THE SAVANNAH COLLECTION
Beautiful by day, Efficient by night

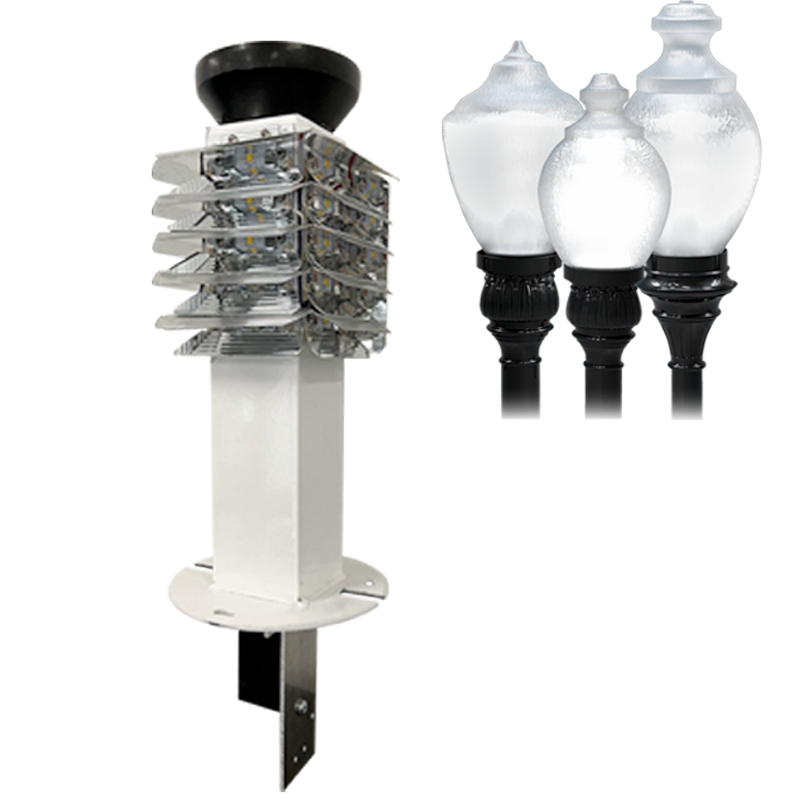

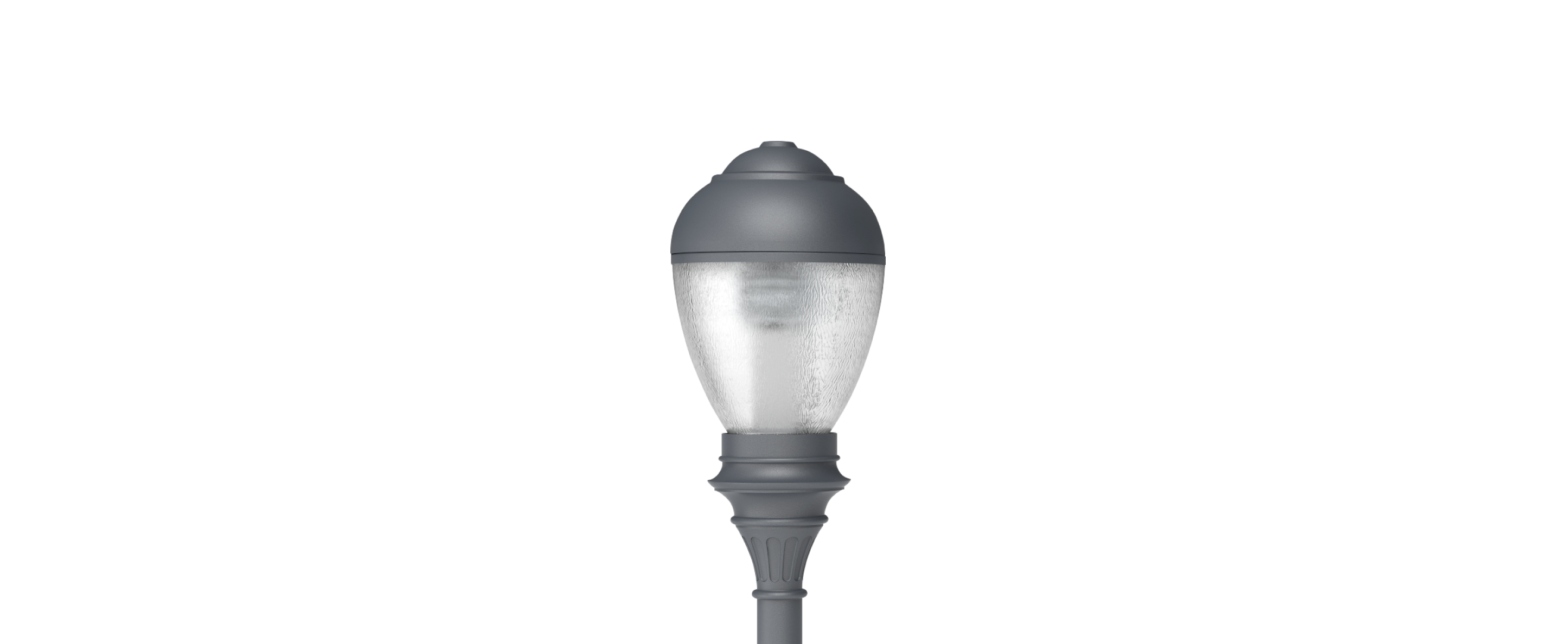

The Savannah Collection and the Post Top Acorn Retrofit Kit System add a touch of class and elegance to any Municipal or Residential Project
• Neighbor and environmentally friendly design with less than 10% Uplight with Star Powered™ Optical System 1
• Industry leading energy efficiency, 100+ lumens per watt with 2700K and 3000K offered at 80 CRI 2
• Eliminate light trespass and improve safety with optimized Type III Asymmetric and Type V Symmetric light distribution
• Internal House Side Shield available with Type III Asymmetric distribution to reduce glare

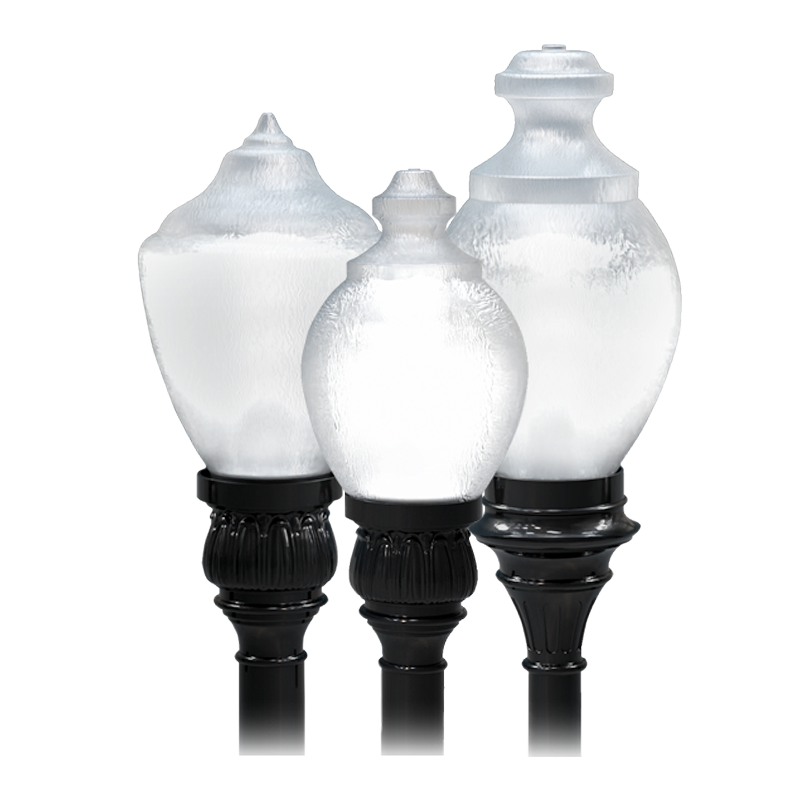

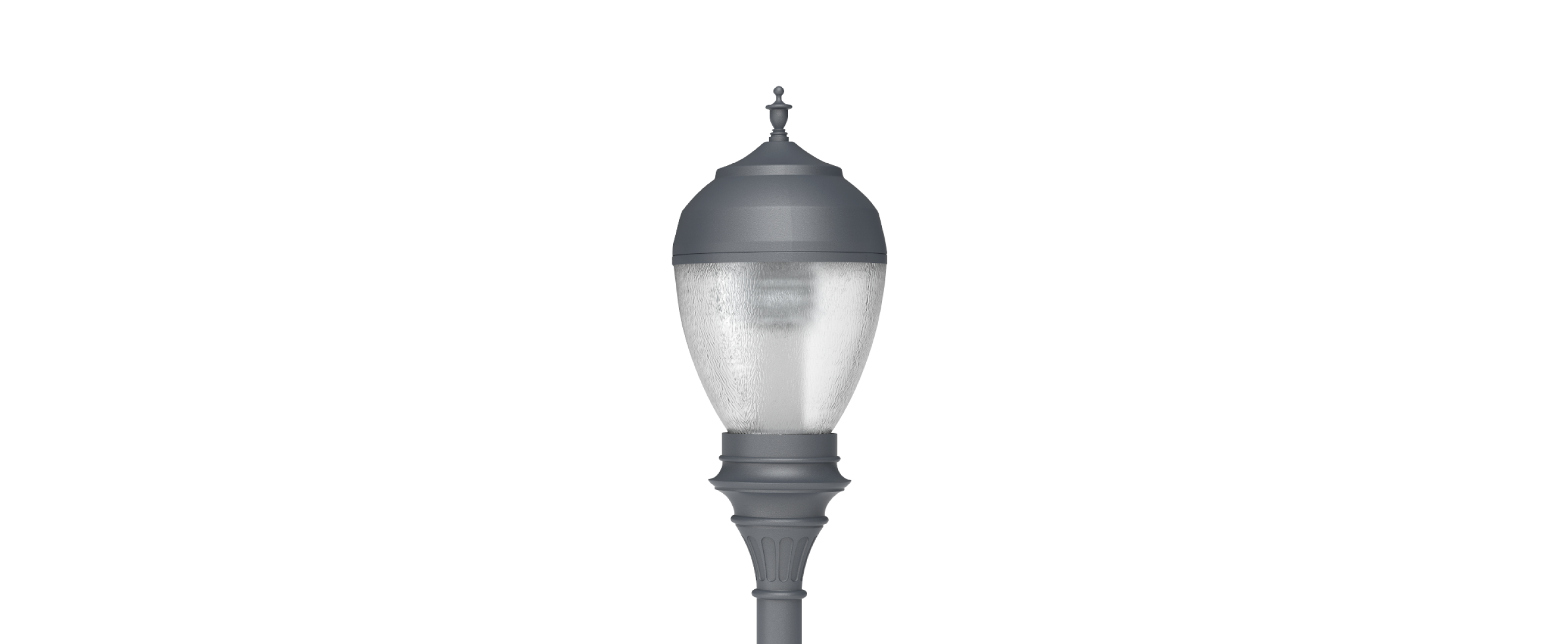

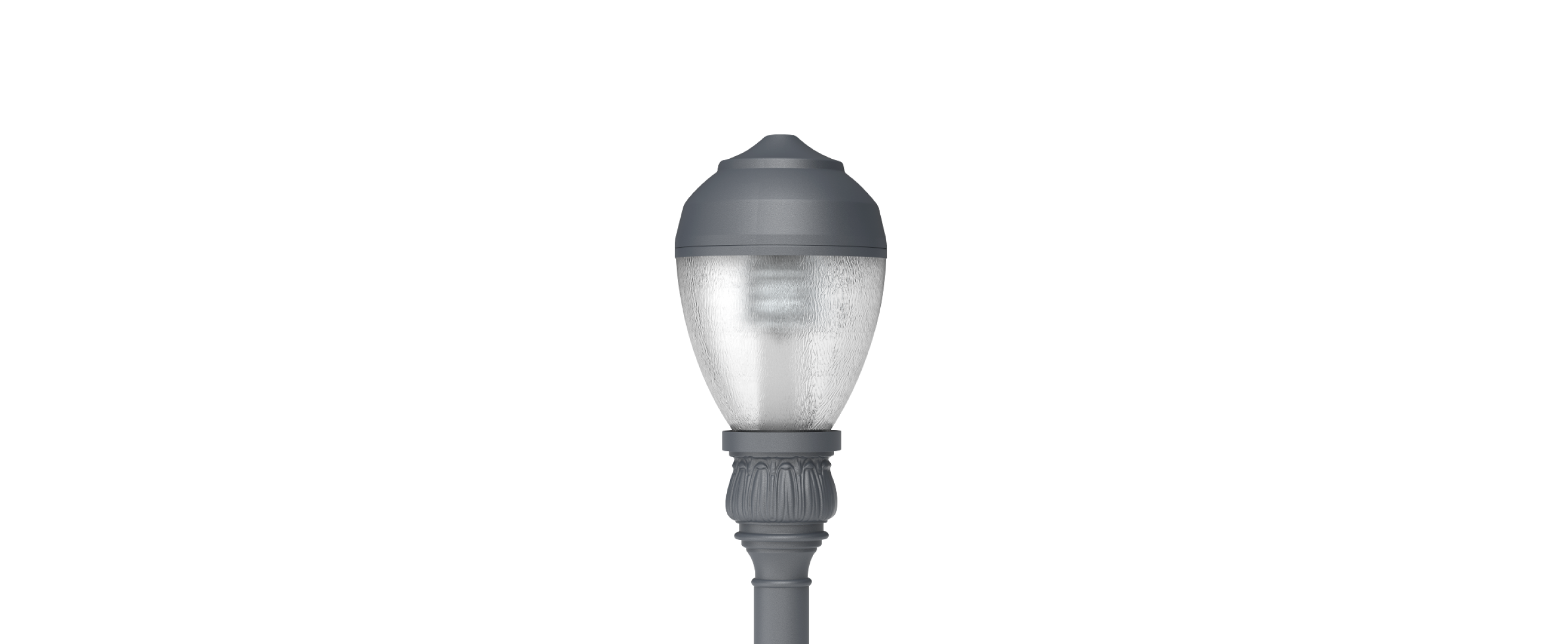

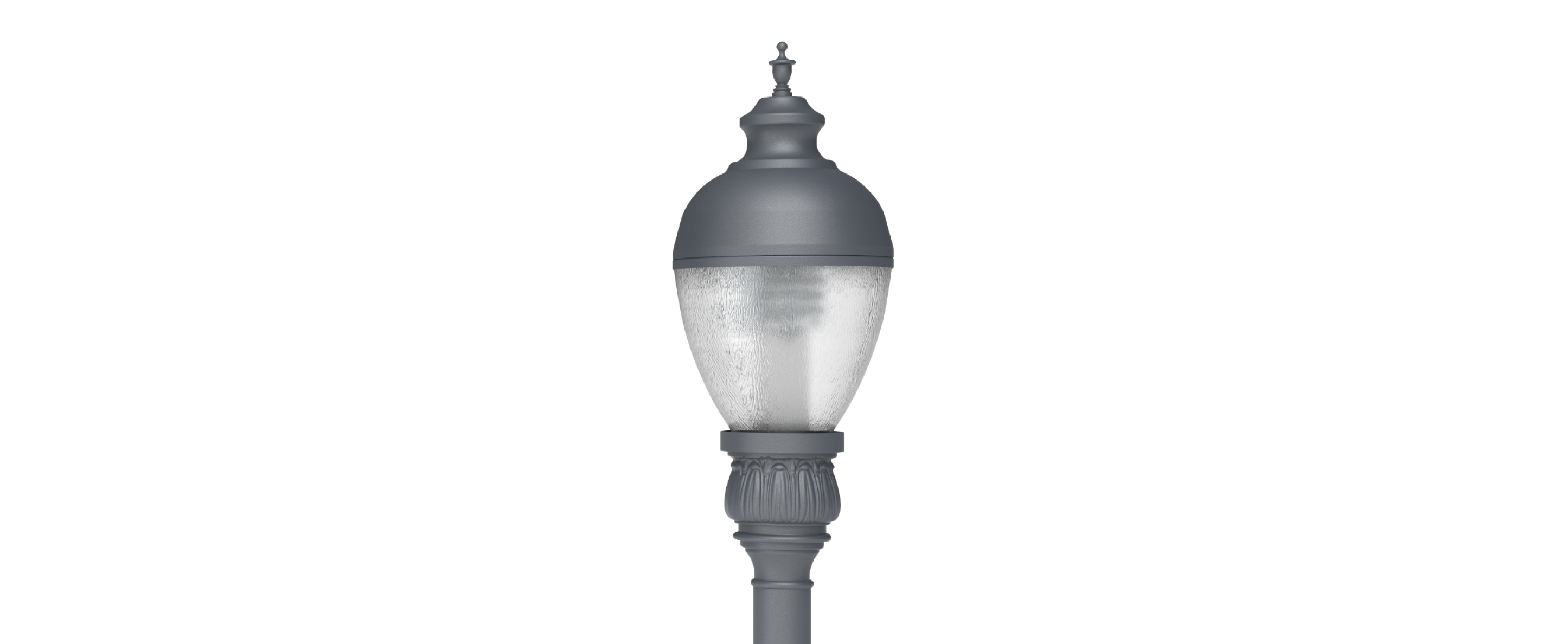

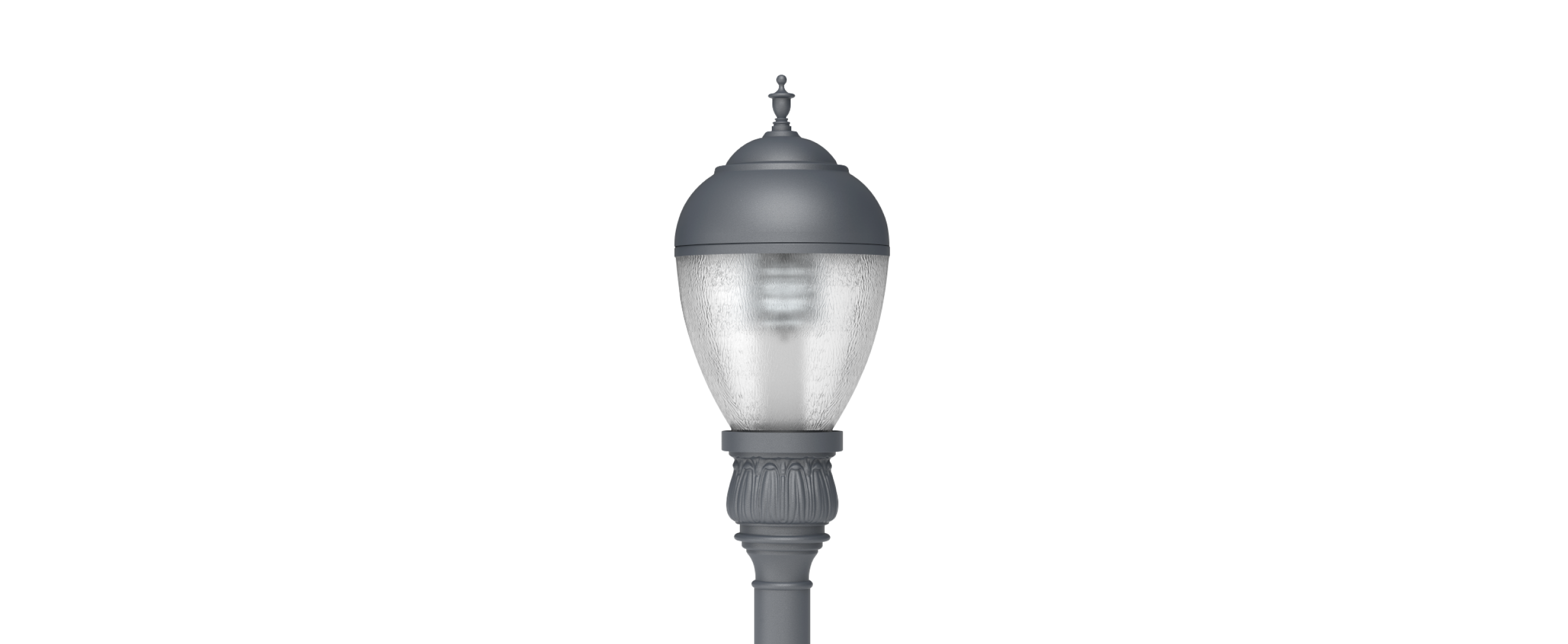

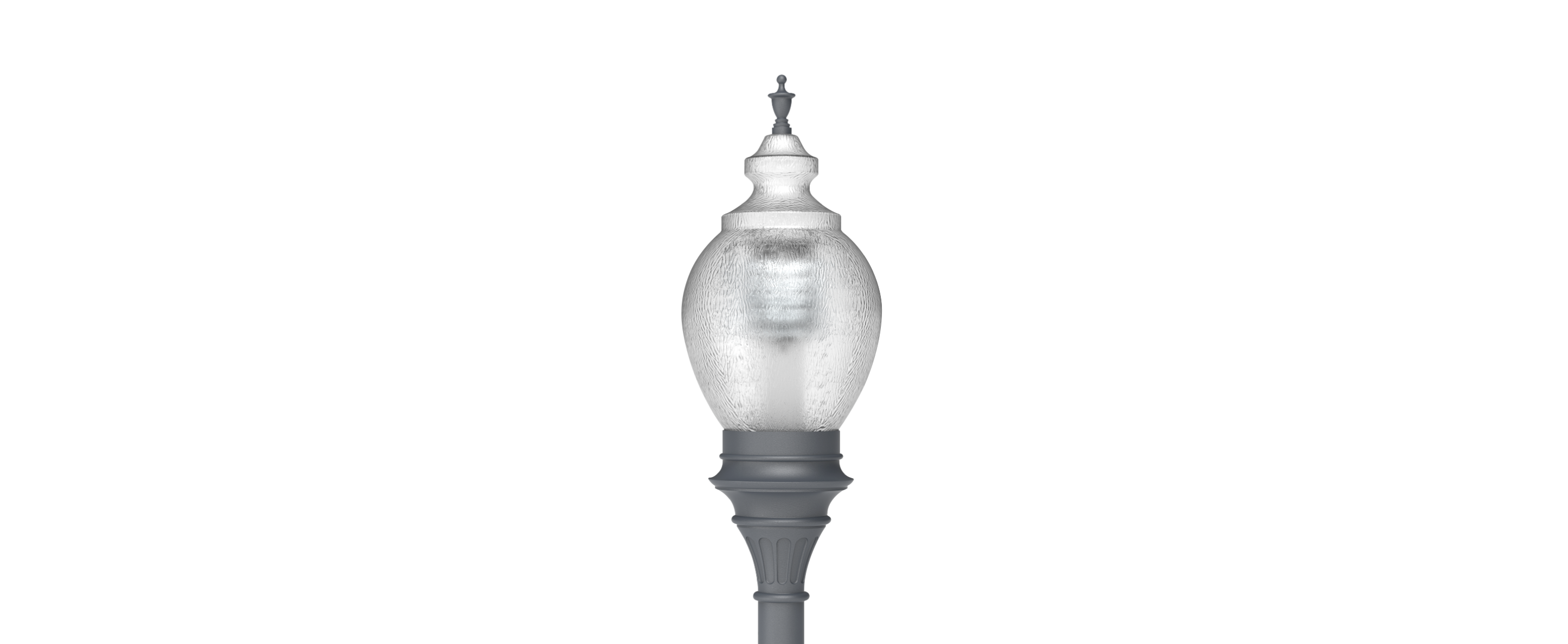

• 3 UV stabilized high transmission clear acrylic globe shapes, stippled finish for uniform light appearance and proper scale for various mounting heights

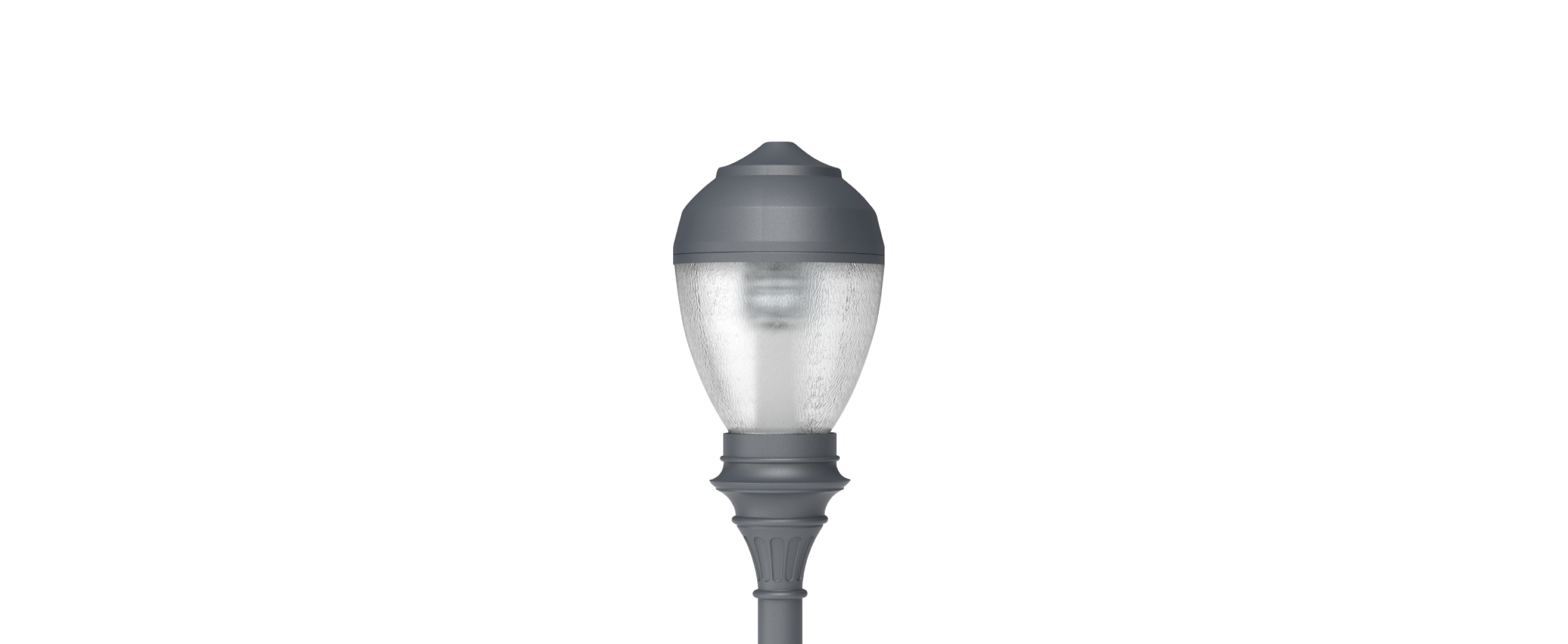

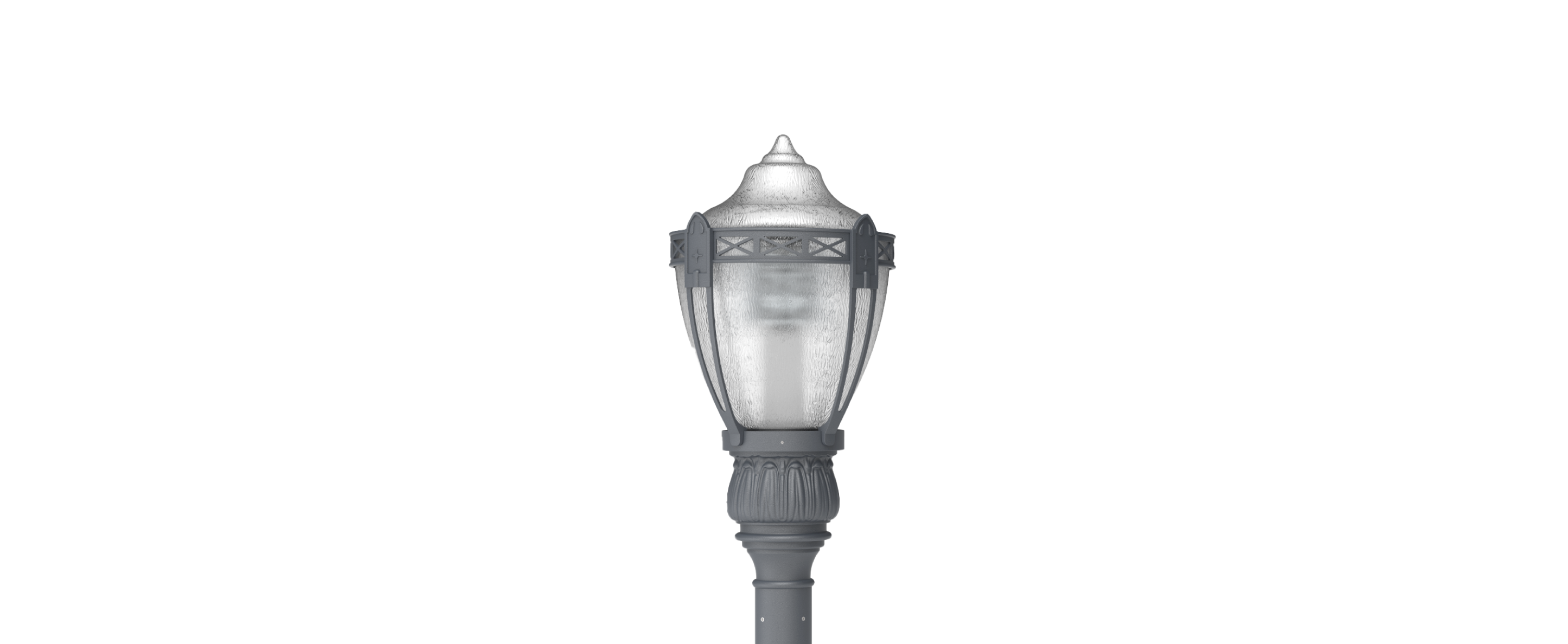

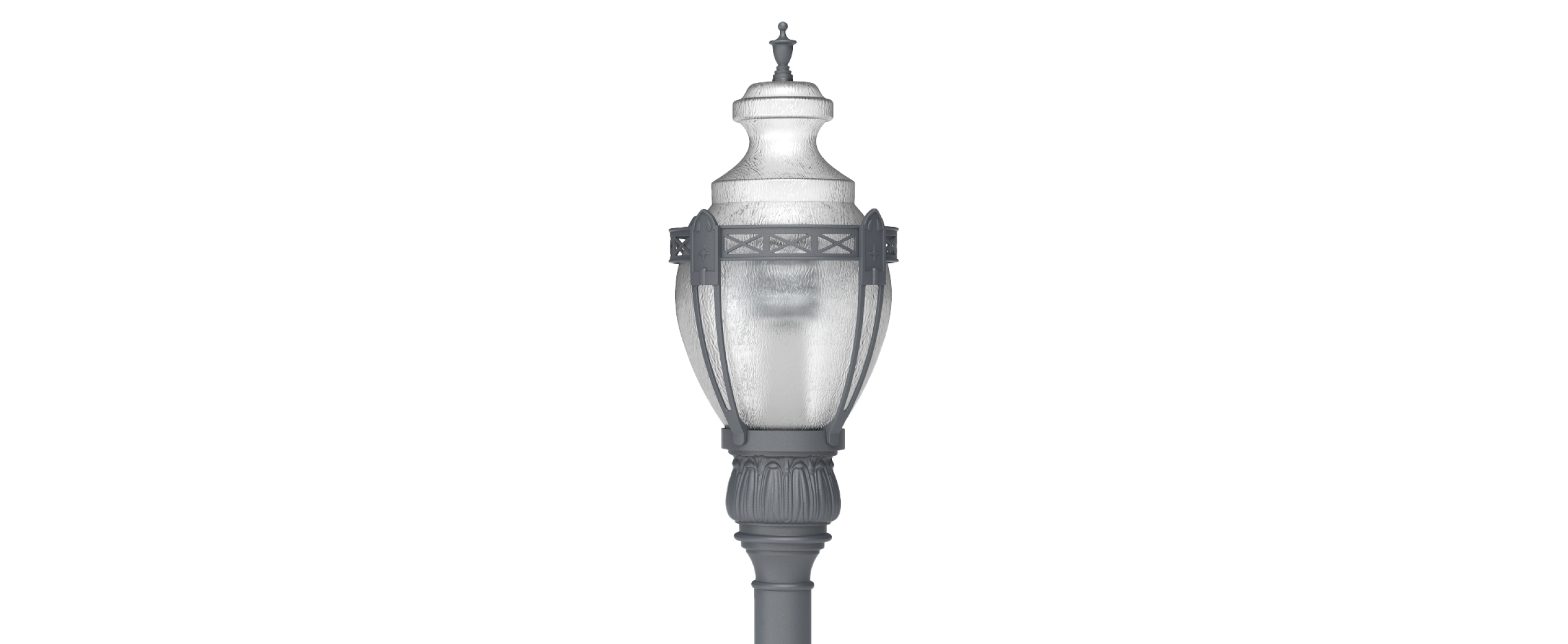

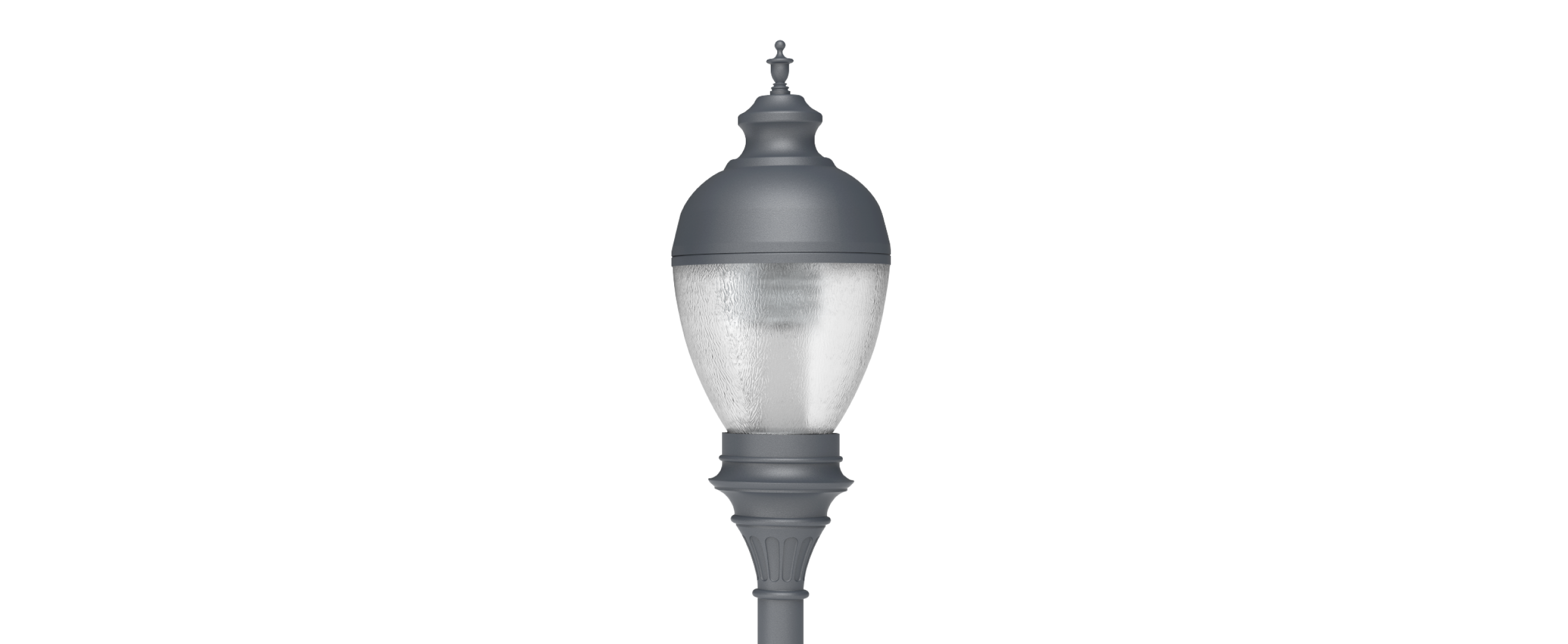

• 2 holder designs, optional Shades, Filigree/Strut + Finial configuration allows for endless design combinations
• Programmable 0–10 volt dimming LED driver with an operating range of -40°C to 50°C for use in most climates
• 20kA Surge Protection standard
• IP66 Rated against dust & water ingress
• 3G Vibration Rated
• 10 standard finish colors as well as custom colors. Optional marine grade finish for demanding environments
• Lighting control system compatible with 7 Pin Receptacle and Dali II Driver option
• Buy America(n) compliant configurations available
1—Averaged Uplight % for all of the configurations
2—Not always applicable in cases with House Side Shield option
Kelvin: 27K7, 27K8, 30K7, 30K8, 35K8, 40K7, 40K8, 50K7, 50K8
Wattage: 38 – 94
Category: Architectural & Decorative Post Top
Product Family: Savannah
Kelvin: 27K7, 27K8, 30K7, 30K8, 35K8, 40K7, 40K8, 50K7, 50K8
Wattage: 38 – 94
Category: Architectural & Decorative Post Top
Product Family: Savannah
SAVANNAH 1 | CONFIGURATOR
SAVANNAH 2 | CONFIGURATOR
Certifications
