*Consult Factory (or Local Rep) for Revit Files. For additional inquiries Contact Us.

NV-3 Wattage

Order	Milliamps	160L	192L	256L
1	800 mA	-	-	596w-614w
2	850 mA	420w	-	633w-648w
3	900 mA	445w	561w	671w-686w
4	975 mA	479w	608w	732w-743w
5	1050 mA	518w	623w-655w	790w-799w
6	1200 Am	592w	-	-

Generated by wpDataTables

NV-3 Lumens

ORDER	Model	T2 Lumens	T2 Lm/W	T3 Lumens	T3 Lm/W	T4 Lumens	T4 Lm/W	T5 Lumens	T5 LM/W	Watts
1	NV-3-160L-85-27K7	43,725	104	44,052	105	41,806	100	44,911	107	420
2	NV-3-160L-85-27K8	40,946	97	41,252	98	39,149	93	42,057	100	420
3	NV-3-160L-85-30K7	47,275	113	47,629	113	45,201	108	48,558	116	420
4	NV-3-160L-85-30K8	43,903	105	44,232	105	41,977	100	45,095	107	420
5	NV-3-160L-85-35K8	43,903	105	44,232	105	41,977	100	45,095	107	420
6	NV-3-160L-85-40K7	51,081	122	51,463	123	48,839	116	52,467	125	420
7	NV-3-160L-85-40K8	47,281	113	47,635	113	45,206	108	48,564	116	420
8	NV-3-160L-85-50K7	51,081	122	51,463	123	48,839	116	52,467	125	420
9	NV-3-160L-85-50K8	47,281	113	47,635	113	45,206	108	48,564	116	420
10	NV-3-160L-90-27K7	46,297	104	46,643	105	44,265	99	47,553	107	445
11	NV-3-160L-90-27K8	43,355	97	43,679	98	41,452	93	44,531	100	445
12	NV-3-160L-90-30K7	50,056	112	50,431	113	47,859	108	51,414	116	445
13	NV-3-160L-90-30K8	46,486	104	46,834	105	44,446	100	47,747	107	445
14	NV-3-160L-90-35K8	46,486	104	46,834	105	44,446	100	47,747	107	445
15	NV-3-160L-90-40K7	54,086	122	54,490	122	51,712	116	55,553	125	445
16	NV-3-160L-90-40K8	50,063	113	50,437	113	47,865	108	51,421	116	445
17	NV-3-160L-90-50K7	54,086	122	54,490	122	51,712	116	55,553	125	445
18	NV-3-160L-90-50K8	50,063	113	50,437	113	47,865	108	51,421	116	445
19	NV-3-160L-97-27K7	50,155	105	50,530	105	47,954	100	51,516	108	479
20	NV-3-160L-97-27K8	46,968	98	47,319	99	44,906	94	48,242	101	479
21	NV-3-160L-97-30K7	54,228	113	54,633	114	51,848	108	55,699	116	479
22	NV-3-160L-97-30K8	50,360	105	50,737	106	48,150	101	51,726	108	479
23	NV-3-160L-97-35K8	50,360	105	50,737	106	48,150	101	51,726	108	479
24	NV-3-160L-97-40K7	58,593	122	59,031	123	56,021	117	60,182	126	479
25	NV-3-160L-97-40K8	54,235	113	54,640	114	51,854	108	55,705	116	479
26	NV-3-160L-97-50K7	58,593	122	59,031	123	56,021	117	60,182	126	479
27	NV-3-160L-97-50K8	54,235	113	54,640	114	51,854	108	55,705	116	479
28	NV-3-160L-1-27K7	54,013	104	54,417	105	51,643	100	55,479	107	518
29	NV-3-160L-1-27K8	50,580	98	50,959	98	48,361	93	51,953	100	518
30	NV-3-160L-1-30K7	58,399	113	58,836	114	55,836	108	59,983	116	518
31	NV-3-160L-1-30K8	54,234	105	54,640	105	51,854	100	55,705	108	518
32	NV-3-160L-1-35K8	54,234	105	54,640	105	51,854	100	55,705	108	518
33	NV-3-160L-1-40K7	63,100	122	63,572	123	60,331	116	64,812	125	518
34	NV-3-160L-1-40K8	58,406	113	58,843	114	55,843	108	59,991	116	518
35	NV-3-160L-1-50K7	63,100	122	63,572	123	60,331	116	64,812	125	518
36	NV-3-160L-1-50K8	58,406	113	58,843	114	55,843	108	59,991	116	518
37	NV-3-160L-12-27K7	61,730	104	62,191	105	59,020	100	63,404	107	592
38	NV-3-160L-12-27K8	57,807	98	58,239	98	55,269	93	59,375	100	592
39	NV-3-160L-12-30K7	66,742	113	67,241	114	63,813	108	68,552	116	592
40	NV-3-160L-12-30K8	61,982	105	62,445	105	59,262	100	63,663	108	592
41	NV-3-160L-12-35K8	61,982	105	62,445	105	59,262	100	63,663	108	592
42	NV-3-160L-12-40K7	72,114	122	72,654	123	68,949	116	74,071	125	592
43	NV-3-160L-12-40K8	66,750	113	67,250	114	63,820	108	68,561	116	592
44	NV-3-160L-12-50K7	72,114	122	72,654	123	68,949	116	74,071	125	592
45	NV-3-160L-12-50K8	66,750	113	67,250	114	63,820	108	68,561	116	592
46	NV-3-192L-9-27K7	55,557	99	55,972	100	53,118	95	56,125	100	561
47	NV-3-192L-9-27K8	52,026	93	52,415	93	49,742	89	52,558	94	561
48	NV-3-192L-9-30K7	60,068	107	60,517	108	57,431	102	60,682	108	561
49	NV-3-192L-9-30K8	55,784	99	56,201	100	53,335	95	56,354	100	561
50	NV-3-192L-9-35K8	55,784	99	56,201	100	53,335	95	56,354	100	561
51	NV-3-192L-9-40K7	64,903	116	65,388	117	62,055	111	65,567	117	561
52	NV-3-192L-9-40K8	60,075	107	60,524	108	57,439	102	60,690	108	561
53	NV-3-192L-9-50K7	64,903	116	65,388	117	62,055	111	65,567	117	561
54	NV-3-192L-9-50K8	60,075	107	60,524	108	57,439	102	60,690	108	561
55	NV-3-192L-97-27K7	60,186	99	60,636	100	57,545	95	60,802	100	608
56	NV-3-192L-97-27K8	56,361	93	56,782	93	53,888	89	56,938	94	608
57	NV-3-192L-97-30K7	65,073	107	65,560	108	62,217	102	65,739	108	608
58	NV-3-192L-97-30K8	60,432	99	60,884	100	57,780	95	61,050	100	608
59	NV-3-192L-97-35K8	60,432	99	60,884	100	57,780	95	61,050	100	608
60	NV-3-192L-97-40K7	70,311	116	70,837	117	67,226	111	71,031	117	608
61	NV-3-192L-97-40K8	65,081	107	65,568	108	62,225	102	65,747	108	608
62	NV-3-192L-97-50K7	70,311	116	70,837	117	67,226	111	71,031	117	608
63	NV-3-192L-97-50K8	65,081	107	65,568	108	62,225	102	65,747	108	608
64	NV-3-192L-1-27K7	64,816	104	65,301	105	61,971	99	65,479	105	623
65	NV-3-192L-1-27K8	60,697	97	61,151	98	58,033	93	61,318	98	623
66	NV-3-192L-1-30K7	70,079	112	70,603	113	67,003	108	70,796	114	623
67	NV-3-192L-1-30K8	65,081	104	65,568	105	62,224	100	65,747	106	623
68	NV-3-192L-1-35K8	65,081	104	65,568	105	62,224	100	65,747	106	623
69	NV-3-192L-1-40K7	75,720	122	76,286	122	72,397	116	76,495	123	623
70	NV-3-192L-1-40K8	70,088	113	70,612	113	67,012	108	70,805	114	623
71	NV-3-192L-1-50K7	75,720	122	76,286	122	72,397	116	76,495	123	623
72	NV-3-192L-1-50K8	70,088	113	70,612	113	67,012	108	70,805	114	623
73	NV-3-256L-8-27K7	65,845	110	66,337	111	62,955	105	67,631	113	599
74	NV-3-256L-8-27K8	61,660	103	62,121	104	58,954	98	63,333	106	599
75	NV-3-256L-8-30K7	71,191	119	71,724	120	68,067	114	73,123	122	599
76	NV-3-256L-8-30K8	66,114	110	66,609	111	63,212	106	67,908	113	599
77	NV-3-256L-8-35K8	66,114	110	66,609	111	63,212	106	67,908	113	599
78	NV-3-256L-8-40K7	76,922	128	77,497	129	73,546	123	79,009	132	599
79	NV-3-256L-8-40K8	71,200	119	71,732	120	68,075	114	73,132	122	599
80	NV-3-256L-8-50K7	76,922	128	77,497	129	73,546	123	79,009	132	599
81	NV-3-256L-8-50K8	71,200	119	71,732	120	68,075	114	73,132	122	599
82	NV-3-256L-85-27K7	69,960	110	70,483	110	66,890	105	71,858	113	638
83	NV-3-256L-85-27K8	65,514	103	66,004	103	62,639	98	67,291	105	638
84	NV-3-256L-85-30K7	75,641	119	76,206	119	72,321	113	77,693	122	638
85	NV-3-256L-85-30K8	70,246	110	70,771	111	67,163	105	72,152	113	638
86	NV-3-256L-85-35K8	70,246	110	70,771	111	67,163	105	72,152	113	638
87	NV-3-256L-85-40K7	81,730	128	82,341	129	78,143	122	83,947	132	638
88	NV-3-256L-85-40K8	75,651	119	76,216	119	72,330	113	77,703	122	638
89	NV-3-256L-85-50K7	81,730	128	82,341	129	78,143	122	83,947	132	638
90	NV-3-256L-85-50K8	75,651	119	76,216	119	72,330	113	77,703	122	638
91	NV-3-256L-9-27K7	74,075	110	74,629	111	70,824	105	76,085	113	675
92	NV-3-256L-9-27K8	69,367	103	69,886	104	66,323	98	71,250	106	675
93	NV-3-2562L-9-30K7	80,090	119	80,689	120	76,575	113	82,263	122	675
94	NV-3-256L-9-30K8	74,378	110	74,934	111	71,114	105	76,396	113	675
95	NV-3-256L-9-35K8	74,378	110	74,934	111	71,114	105	76,396	113	675
96	NV-3-256L-9-40K7	86,537	128	87,184	129	82,739	123	88,885	132	675
97	NV-3-256L-9-40K8	80,100	119	80,699	120	76,585	113	82,273	122	675
98	NV-3-256L-9-50K7	86,537	128	87,184	129	82,739	123	88,885	132	675
99	NV-3-256L-9-50K8	80,100	119	80,699	120	76,585	113	82,273	122	675
100	NV-3-256L-97-27K7	80,248	110	80,848	110	76,726	105	82,425	113	732
101	NV-3-256L-97-27K8	75,148	103	75,710	103	71,850	98	77,187	105	732
102	NV-3-256L-97-30K7	86,764	119	87,413	119	82,956	113	89,118	122	732
103	NV-3-256L-97-30K8	80,576	110	81,179	111	77,039	105	82,762	113	732
104	NV-3-256L-97-35K8	80,576	110	81,179	111	77,039	105	82,762	113	732
105	NV-3-256L-97-40K7	93,749	128	94,450	129	89,634	122	96,292	132	732
106	NV-3-256L-97-40K8	86,776	119	87,424	119	82,967	113	89,129	122	732
107	NV-3-256L-97-50K7	93,749	128	94,450	129	89,634	122	96,292	132	732
108	NV-3-256L-97-50K8	86,776	119	87,424	119	82,967	113	89,129	122	732
109	NV-3-256L-1-27K7	86,421	110	87,068	110	82,628	105	88,766	113	788
110	NV-3-256L-1-27K8	80,929	103	81,535	103	77,377	98	83,125	105	788
111	NV-3-256L-1-30K7	93,438	119	94,137	119	89,338	113	95,973	122	788
112	NV-3-256L-1-30K8	86,774	110	87,423	111	82,966	105	89,128	113	788
113	NV-3-256L-1-35K8	86,774	110	87,423	111	82,966	105	89,128	113	788
114	NV-3-256L-1-40K7	100,960	128	101,715	129	96,529	122	103,699	132	788
115	NV-3-256L-1-40K8	93,450	119	94,149	119	89,349	113	95,985	122	788
116	NV-3-256L-1-50K7	100,960	128	101,715	129	96,529	122	103,699	132	788
117	NV-3-256L-1-50K8	93,450	119	94,149	119	89,349	113	95,985	122	788

Generated by wpDataTables

Download WHY SILICONE OPTICS? Brochure to Learn more!

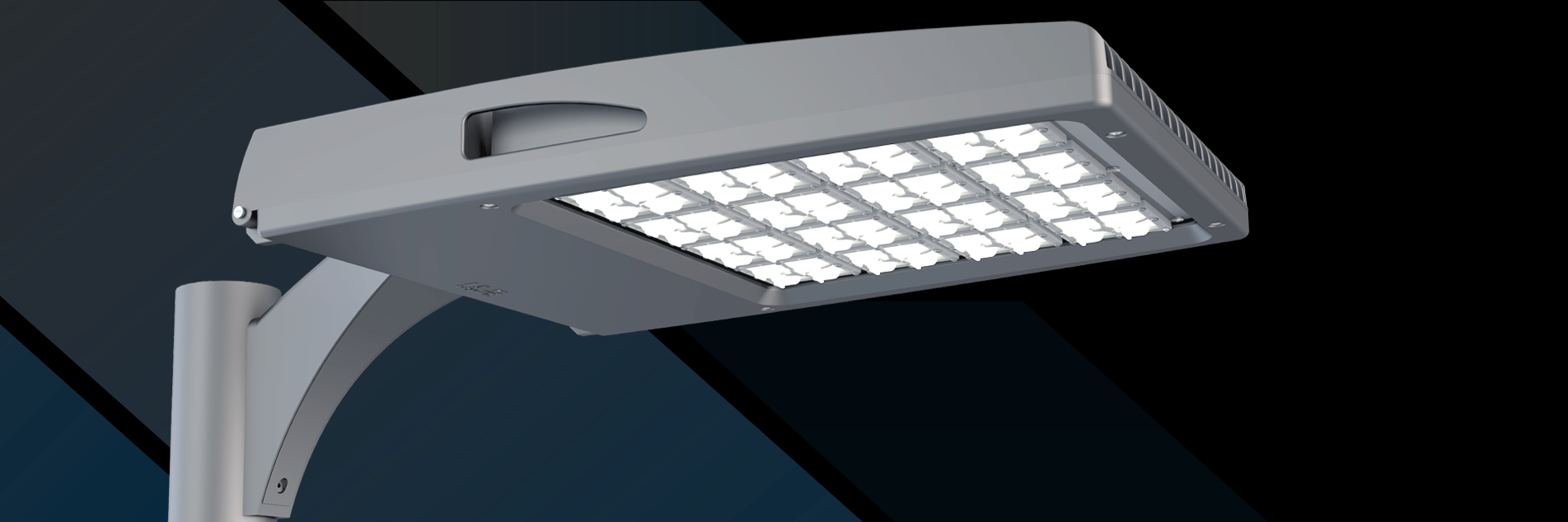

• Ideal High Lumen Output for Area, Site, Roadway, and Large Parking Venues such as: Corporate Parks, Shopping Malls, Event & Sports Stadiums, Roadways, and Airports
• Sleek Robust Design of the NV-3 (Weight: 55 lbs., EPA: 0.73) Compliments the NV-1 and NV2
• IES Distributions T2, T3, T4, and T5
• 160L, 192L, and 256L LED Configurations, 391 to 781 Watts
• 2700K, 3000K, 3500K, 4000K, 5000K CCT Multichip High Power 70 & 80 CRI LEDs
• IP66 Rated Against Dust & Water Ingress, IK10 Rated for Tamper/Vandalism/Impact Protection
• Mountings available have a 1.5G to 3G Vibration Rating: Architectural Sweep Arm, Direct Pole 6” and 11” Arm, Knuckle Mount, Wall Mount, Trunnion Mount, and Tennis Arm
• 20kA Surge Protection (120V – 480V), 0 – 10V Programmable, Dimming LED Drivers
• LED Drivers Ambient Temp. Min (°C) is -40°C and Ambient Temp. Max (°C) ranges from 50°C to 55°C
• Silicone Micro Optics providing 96% Clarity and Heat Resistant up to 150°C
• 9 Standard Finishes, Custom and Marine Grade Finish Available
• Controls Agnostic, Compatible with Most Control Systems and Sensors
• Environmentally Friendly Product Which Reduces Energy Consumption, L70 > 100,000 hours
• Buy America(n) Option Available, Easy to Install Mounting
• Cost Competitive and Short Shipping Lead Times in Days & Weeks
