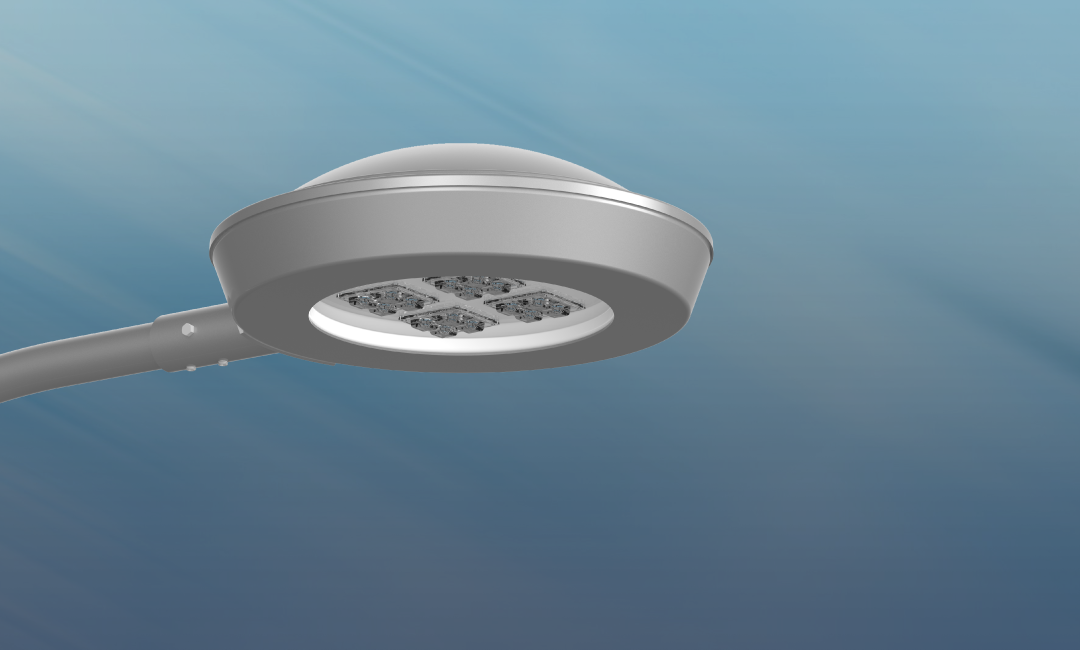

HORIZON MA - NLS Lighting, LLC

Gallery
Literature
Installation
IES
BIM/REVIT
Bug Ratings
Lumen Data
Optical System
Features
Specifications

Related marketing material is available for download or by request for delivery. Standard shipping is 5-7 business days via UPS Ground. For expedited delivery, please contact factory. Click HERE to order literature.

Click on image to download!

Name

Size

Modified

Ascending

Descending

Select all

Deselect all

Download folder

Download selected

Thumbnails view

List view

No options...

Loading...

Name

Size

Modified

Ascending

Descending

Select all

Deselect all

Download folder

Download selected

Thumbnails view

List view

No options...

*Consult Factory (or Local Rep) for Revit Files. For additional inquiries Contact Us.

Horizon Bug Ratings

Order	Model	T2 B.U.G.	T3 B.U.G.	T3 HSS B.U.G.	T4 B.U.G.	T4 HSS B.U.G.	T5 B.U.G.	Watts
1	HRZ-1-16L-400-30K	B1-U0-G1	B1-U0-G1	B0-U0-G0	B1-U0-G1	B0-U0-G0	B2-U0-G1	21
2	HRZ-1-16L-400-40K	B1-U0-G1	B1-U0-G1	B0-U0-G0	B1-U0-G1	B0-U0-G0	B2-U0-G1	21
3	HRZ-1-16L-400-50K	B1-U0-G1	B1-U0-G1	B0-U0-G0	B1-U0-G1	B0-U0-G0	B2-U0-G1	21
4	HRZ-1-16L-530-30K	B1-U0-G1	B1-U0-G1	B0-U0-G0	B1-U0-G1	B0-U0-G1	B2-U0-G1	28
5	HRZ-1-16L-530-40K	B1-U0-G1	B1-U0-G1	B0-U0-G1	B1-U0-G1	B0-U0-G1	B2-U0-G1	28
6	HRZ-1-16L-530-50K	B1-U0-G1	B1-U0-G1	B0-U0-G1	B1-U0-G1	B0-U0-G1	B2-U0-G1	28
7	HRZ-1-16L-700-30K	B1-U0-G1	B1-U0-G1	B0-U0-G1	B1-U0-G1	B0-U0-G1	B3-U0-G1	36
8	HRZ-1-16L-700-40K	B1-U0-G1	B1-U0-G1	B0-U0-G1	B1-U0-G1	B0-U0-G1	B3-U0-G1	36
9	HRZ-1-16L-700-50K	B1-U0-G1	B1-U0-G1	B0-U0-G1	B1-U0-G1	B0-U0-G1	B3-U0-G1	36
10	HRZ-1-16L-1050-30K	B1-U0-G1	B1-U0-G1	B0-U0-G1	B1-U0-G2	B0-U0-G1	B3-U0-G1	56
11	HRZ-1-16L-1050-40K	B1-U0-G1	B1-U0-G1	B0-U0-G1	B1-U0-G2	B0-U0-G1	B3-U0-G1	56
12	HRZ-1-16L-1050-50K	B1-U0-G1	B1-U0-G2	B0-U0-G1	B1-U0-G2	B0-U0-G1	B3-U0-G1	56
13	HRZ-1-32L-530-30K	B1-U0-G1	B1-U0-G1	B0-U0-G1	B1-U0-G2	B0-U0-G1	B3-U0-G1	54
14	HRZ-1-32L-530-40K	B1-U0-G1	B1-U0-G1	B0-U0-G1	B1-U0-G2	B0-U0-G1	B3-U0-G1	54
15	HRZ-1-32L-530-50K	B1-U0-G1	B1-U0-G2	B0-U0-G1	B1-U0-G2	B0-U0-G1	B3-U0-G1	54
16	HRZ-1-32L-700-30K	B2-U0-G2	B2-U0-G2	B0-U0-G1	B2-U0-G2	B0-U0-G1	B3-U0-G2	71
17	HRZ-1-32L-700-40K	B2-U0-G2	B2-U0-G2	B0-U0-G1	B2-U0-G2	B0-U0-G1	B3-U0-G2	71
18	HRZ-1-32L-700-50K	B2-U0-G2	B2-U0-G2	B0-U0-G1	B2-U0-G2	B0-U0-G2	B3-U0-G2	71
19	HRZ-1-32L-1050-30K	B2-U0-G2	B2-U0-G2	B0-U0-G2	B2-U0-G2	B0-U0-G2	B4-U0-G2	106
20	HRZ-1-32L-1050-40K	B2-U0-G2	B2-U0-G2	B0-U0-G2	B2-U0-G2	B0-U0-G2	B4-U0-G2	106
21	HRZ-1-32L-1050-50K	B2-U0-G2	B2-U0-G2	B0-U0-G2	B2-U0-G2	B0-U0-G2	B4-U0-G2	106
22	HRZ-1-48L-700-30K	B2-U0-G2	B2-U0-G2	B0-U0-G2	B2-U0-G2	B0-U0-G2	B4-U0-G2	104
23	HRZ-1-48L-700-40K	B2-U0-G2	B2-U0-G2	B0-U0-G2	B2-U0-G2	B0-U0-G2	B4-U0-G2	104
24	HRZ-1-48L-700-50K	B2-U0-G2	B2-U0-G2	B0-U0-G2	B2-U0-G2	B0-U0-G2	B4-U0-G2	104
25	HRZ-1-48L-1050-30K	B3-U0-G3	B3-U0-G3	B0-U0-G2	B3-U0-G3	B1-U0-G2	B4-U0-G2	156
26	HRZ-1-48L-1050-40K	B3-U0-G3	B3-U0-G3	B0-U0-G2	B3-U0-G3	B1-U0-G2	B4-U0-G2	156
27	HRZ-1-48L-1050-50K	B3-U0-G3	B3-U0-G3	B1-U0-G2	B3-U0-G3	B1-U0-G2	B4-U0-G2	156
28	HRZ-1-64L-700-30K	B3-U0-G3	B3-U0-G3	B0-U0-G2	B3-U0-G3	B0-U0-G2	B4-U0-G2	137
29	HRZ-1-64L-700-40K	B3-U0-G3	B3-U0-G3	B0-U0-G2	B3-U0-G3	B1-U0-G2	B4-U0-G2	137
30	HRZ-1-64L-700-50K	B3-U0-G3	B3-U0-G3	B0-U0-G2	B3-U0-G3	B1-U0-G2	B4-U0-G2	137
31	HRZ-1-64L-1050-30K	B3-U0-G3	B3-U0-G3	B1-U0-G2	B3-U0-G3	B1-U0-G2	B5-U0-G3	205
32	HRZ-1-64L-1050-40K	B3-U0-G3	B3-U0-G3	B1-U0-G2	B3-U0-G4	B1-U0-G3	B5-U0-G3	205
33	HRZ-1-64L-1050-50K	B3-U0-G3	B3-U0-G3	B1-U0-G2	B3-U0-G4	B1-U0-G3	B5-U0-G3	205

Generated by wpDataTables

Horizon Wattage

Order	Milliamps	16L	32L	48L	64L
1	400 mA (40)	21w	-	-	-
2	530 mA (53)	28w	56w	-	-
3	700 mA (7)	36w	71w	104w	136w
4	1050 mA (1)	56w	106w	156w	205w

Generated by wpDataTables

Horizon Lumens

Order	Model	T2 Lumens	T2 Lm/W	T3 Lumens	T3 Lm/W	T4 Lumens	T4 Lm/W	T5 Lumens	T5 Lm/W	Watts
1	HRZ-1-16L-40-27K7	2,305	110	2,247	107	2,227	106	2,324	111	21
2	HRZ-1-16L-40-27K8	2,158	103	2,104	100	2,085	99	2,176	104	21
3	HRZ-1-16L-40-30K8	2,314	110	2,256	107	2,236	106	2,333	111	21
4	HRZ-1-16L-40-30K7	2,492	119	2,429	116	2,408	115	2,513	120	21
5	HRZ-1-16L-40-35K8	2,314	110	2,256	107	2,236	106	2,333	111	21
6	HRZ-1-16L-40-40K8	2,492	119	2,429	116	2,408	115	2,513	120	21
7	HRZ-1-16L-40-40K7	2,693	128	2,625	125	2,602	124	2,715	129	21
8	HRZ-1-16L-40-50K8	2,492	119	2,429	116	2,408	115	2,513	120	21
9	HRZ-1-16L-40-50K7	2,693	128	2,625	125	2,602	124	2,715	129	21
10	HRZ-1-16L-53-30K7	3,275	117	3,192	114	3,165	113	3,304	118	28
11	HRZ-116L-53-40K7	3,524	126	3,435	123	3,406	122	3,556	127	28
12	HRZ-1-16L-53-50K7	3,603	129	3,511	125	3,482	124	3,640	130	28
13	HRZ-1-16L-7-30K7	4,100	114	4,115	111	4,003	111	4,176	116	36
14	HRZ-1-16L-7-40K7	4,411	123	4,300	119	4,308	120	4,500	125	36
15	HRZ-1-16L-7-50K7	4,510	125	4,396	122	4,404	122	4,608	128	36
16	HRZ-1-16L-1-30K7	5,858	105	5,712	102	5,661	101	5,880	105	56
17	HRZ-1-16L-1-40K7	6,303	113	6,146	110	6,091	109	6,328	113	56
18	HRZ-1-16L-1-50K7	6,443	115	6,283	112	6,227	111	6,496	116	56
19	HRZ-1-32L-53-30K7	5,858	105	5,712	102	5,661	101	5,880	105	56
20	HRZ-1-32L-53-40K7	6,303	113	6,146	110	6,091	109	6,328	113	56
21	HRZ-1-32L-53-50K7	6,443	115	6,283	112	6,227	111	6,496	116	56
22	HRZ-1-32L-7-30K7	7,427	105	7,881	111	7,896	111	8,236	116	71
23	HRZ-1-32L-7-40K7	7,991	113	8,480	119	8,496	120	8,875	125	71
24	HRZ-1-32L-7-50K7	8,169	115	8,669	122	8,685	122	9,088	128	71
25	HRZ-1-32L-1-30K7	11,088	105	10,812	102	10,715	101	11,130	105	106
26	HRZ-1-32L-1-40K7	11,930	113	11,634	110	11,529	109	11,978	113	106
27	HRZ-1-32L-1-50K7	12,196	115	11,893	112	11,787	111	12,296	116	106
28	HRZ-1-48L-7-30K7	11,844	114	11,544	111	11,648	112	12,068	116	104
29	HRZ-1-48L-7-40K7	12,744	123	12,421	119	12,444	120	12,985	125	104
30	HRZ-1-48L-7-50K7	13,028	125	12,698	122	12,792	123	13,275	128	104
31	HRZ-1-48L-1-30K7	16,318	105	15,912	102	15,769	101	16,455	105	156
32	HRZ-1-48L-1-40K7	17,558	113	17,121	110	16,968	109	17,705	113	156
33	HRZ-1-48L-1-50K7	17,950	115	17,503	112	17,346	111	18,100	116	156
34	HRZ-1-64L-7-30K7	15,488	114	15,096	111	15,124	111	15,781	116	136
35	HRZ-1-64L-7-40K7	16,665	123	16,243	119	16,273	120	16,981	125	136
36	HRZ-1-64L-7-50K7	17,037	125	16,606	122	16,728	123	17,359	128	136
37	HRZ-1-64L-1-30K7	23,346	114	22,755	111	20,722	101	23,780	116	205
38	HRZ-1-64L-1-40K7	25,120	123	24,484	119	22,297	109	25,625	125	205
39	HRZ-1-64L-1-50K7	25,681	125	25,031	122	22,795	111	26,240	128	205

Generated by wpDataTables

Horizon HSS Lumens

Order	Model	T3 HSS Lumens	T3 HSS Lm/W	T4 HSS Lumens	T4 HSS Lm/W	Watts
1	HRZ-1-16L-40-27K7	-	-	-	-	21
2	HRZ-1-16L-40-27K8	-	-	-	-	21
3	HRZ-1-16L-40-30K8	-	-	-	-	21
4	HRZ-1-16L-40-30K7	-	-	-	-	21
5	HRZ-1-16L-40-35K8	-	-	-	-	21
6	HRZ-1-16L-40-40K8	-	-	-	-	21
7	HRZ-1-16L-40-40K7	-	-	-	-	21
8	HRZ-1-16L-40-50K8	-	-	-	-	21
9	HRZ-1-16L-40-50K7	-	-	-	-	21
10	HRZ-1-16L-53-30K7	1624	58	1596	57	28
11	HRZ-116L-53-40K7	1736	62	1708	61	28
12	HRZ-1-16L-53-50K7	1848	66	1820	65	28
13	HRZ-1-16L-7-30K7	2088	58	2052	57	36
14	HRZ-1-16L-7-40K7	2232	62	2196	61	36
15	HRZ-1-16L-7-50K7	2376	66	2340	65	36
16	HRZ-1-16L-1-30K7	3248	58	3192	57	56
17	HRZ-1-16L-1-40K7	3472	62	3416	61	56
18	HRZ-1-16L-1-50K7	3696	66	3640	65	56
19	HRZ-1-32L-53-30K7	3248	58	3192	57	56
20	HRZ-1-32L-53-40K7	3472	62	3416	61	56
21	HRZ-1-32L-53-50K7	3696	66	3640	65	56
22	HRZ-1-32L-7-30K7	4118	58	4047	57	71
23	HRZ-1-32L-7-40K7	4402	62	4331	61	71
24	HRZ-1-32L-7-50K7	4686	66	4615	65	71
25	HRZ-1-32L-1-30K7	6148	58	6042	57	106
26	HRZ-1-32L-1-40K7	6572	62	6466	61	106
27	HRZ-1-32L-1-50K7	6996	66	6890	65	106
28	HRZ-1-48L-7-30K7	6032	58	5928	57	104
29	HRZ-1-48L-7-40K7	6448	62	6344	61	104
30	HRZ-1-48L-7-50K7	6864	66	6760	65	104
31	HRZ-1-48L-1-30K7	9048	58	8892	57	156
32	HRZ-1-48L-1-40K7	9672	62	9516	61	156
33	HRZ-1-48L-1-50K7	10296	66	10140	65	156
34	HRZ-1-64L-7-30K7	7888	58	7752	57	136
35	HRZ-1-64L-7-40K7	8432	62	8296	61	136
36	HRZ-1-64L-7-50K7	8976	66	8840	65	136
37	HRZ-1-64L-1-30K7	11890	58	11685	57	205
38	HRZ-1-64L-1-40K7	12710	62	12505	61	205
39	HRZ-1-64L-1-50K7	13530	66	13325	65	205

Generated by wpDataTables

Download WHY SILICONE OPTICS? Brochure to Learn more!

– Designed to blend beautifully on residential, commercial or recreational applications
– Neighborhood friendly full Cutoff Dark Sky luminaire design with recessed LEDs to eliminate direct glare
– Clear tempered safety glass lens with silicone gasket that improves fixture reliability
– Available from 18 to 205 watts
– Throws light up to five mounting heights in all directions, enabling performance to exceed IES minimum foot candle levels and extend maintenance cycles
– Kelvin temperature offering of (warm) 3000, (neutral) 4000 and (cool) 5000 in Type 2, 3, 4 and 5 light distributions
– Philips Advance driver technology warranted 5 years
– Conforms to the strictest Made in America standards designed, tooled, fabricated and assembled in the USA
