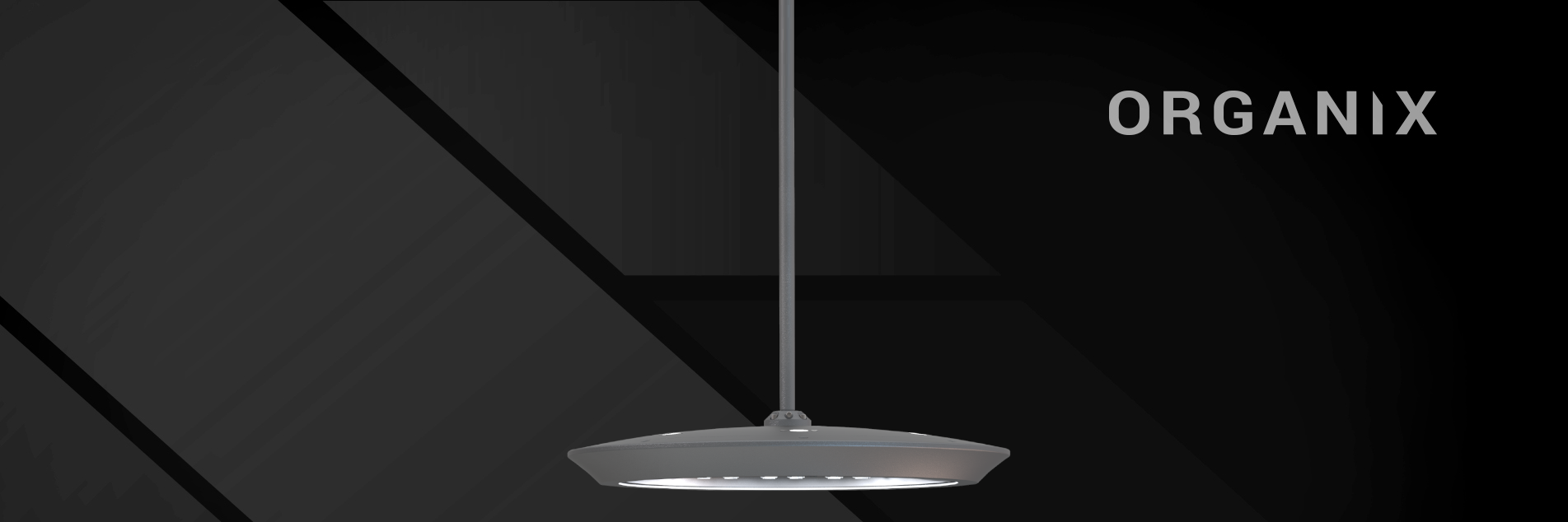

ORX-3-PB - NLS Lighting, LLC

Literature
Installation
IES
BIM/REVIT
Lumen Data
Optical System
Features

Related marketing material is available for download or by request for delivery. Standard shipping is 5-7 business days via UPS Ground. For expedited delivery, please contact factory. Click HERE to order literature.

Click on image to download!

Loading...

Name

Size

Modified

Ascending

Descending

Select all

Deselect all

Download folder

Download selected

Thumbnails view

List view

No options...

Loading...

Name

Size

Modified

Ascending

Descending

Select all

Deselect all

Download folder

Download selected

Thumbnails view

List view

No options...
*Consult Factory for additional IES Files. Contact Us

*Consult Factory for additional BIM/REVIT Files. Contact Us

Organix 3-PB Wattage

Order	Milliamps	144L
1	350 mA	155W (21,460–24,255 Lumens)
2	530 mA	230W (32,152–36,110 Lumens)
3	700 mA	300W (39,780–45,000 Lumens)
4	900 mA	385W (46,922–53,515 Lumens)
5	1000 mA	428W (51,703–59,064 Lumens)

Generated by wpDataTables

Organix 3-PB Lumens No Lens

Order	Model	15° Lumens	15° Lm/W	30° Lumens	30° Lm/W	55° Lumens	55° Lm/W	85° Lumens	85° Lm/W	Watts
1	ORX-3-PB-144L-35-30K7	22,669	146	22,971	148	21,611	139	23,649	153	155
2	ORX-3-PB-144L-35-30K8	18,042	116	18,283	118	17,200	111	18,822	121	155
3	ORX-3-PB-144L-35-35K8	18,600	120	18,848	122	17,732	114	19,404	125	155
4	ORX-3-PB-144L-35-40K7	23,250	150	23,560	152	22,165	143	24,255	156	155
5	ORX-3-PB-144L-35-40K8	19,298	125	19,555	126	18,397	119	20,132	130	155
6	ORX-3-PB-144L-35-50K7	23,250	150	23,560	152	22,165	143	24,255	156	155
7	ORX-3-PB-144L-35-50K8	19,298	125	19,555	126	18,397	119	20,132	130	155
8	ORX-3-PB-144L-53-30K7	33,862	147	34,310	149	32,208	140	35,207	153	230
9	ORX-3-PB-144L-53-30K8	26,950	117	27,307	119	25,634	111	28,021	122	230
10	ORX-3-PB-144L-53-35K8	27,784	121	28,152	122	26,427	115	28,888	126	230
11	ORX-3-PB-144L-53-40K7	34,730	151	35,190	153	33,034	144	36,110	157	230
12	ORX-3-PB-144L-53-40K8	28,826	125	29,208	127	27,418	119	29,971	130	230
13	ORX-3-PB-144L-53-50K7	34,730	151	35,190	153	33,034	144	36,110	157	230
14	ORX-3-PB-144L-53-50K8	28,826	125	29,208	127	27,418	119	29,971	130	230
15	ORX-3-PB-144L-7-30K7	42,120	140	42,634	142	40,073	134	43,875	146	300
16	ORX-3-PB-144L-7-30K8	33,523	112	33,932	113	31,894	106	34,920	116	300
17	ORX-3-PB-144L-7-35K8	34,560	115	34,982	117	32,880	110	36,000	120	300
18	ORX-3-PB-144L-7-40K7	43,200	144	43,727	146	41,100	137	45,000	150	300
19	ORX-3-PB-144L-7-40K8	35,856	120	36,293	121	34,113	114	37,350	125	300
20	ORX-3-PB-144L-7-50K7	43,200	144	43,727	146	41,100	137	45,000	150	300
21	ORX-3-PB-144L-7-50K8	35,856	120	36,293	121	34,113	114	37,350	125	300
22	ORX-3-PB-144L-9-30K7	49,925	130	50,676	132	47,297	123	52,177	136	385
23	ORX-3-PB-144L-9-30K8	39,735	103	40,333	105	37,644	98	41,528	108	385
24	ORX-3-PB-144L-9-35K8	40,964	106	41,580	108	38,808	101	42,812	111	385
25	ORX-3-PB-144L-9-40K7	51,205	133	51,975	135	48,510	126	53,515	139	385
26	ORX-3-PB-144L-9-40K8	42,500	110	43,139	112	40,263	105	44,417	115	385
27	ORX-3-PB-144L-9-50K7	51,205	133	51,975	135	48,510	126	53,515	139	385
28	ORX-3-PB-144L-9-50K8	42,500	110	43,139	112	40,263	105	44,417	115	385
29	ORX-3-PB-144L-1A-30K7	55,167	129	55,918	131	52,163	122	57,587	135	428
30	ORX-3-PB-144L-1A-30K8	43,908	103	44,505	104	41,516	97	45,834	107	428
31	ORX-3-PB-144L-1A-35K8	45,266	106	45,882	107	42,800	100	47,251	110	428
32	ORX-3-PB-144L-1A-40K7	56,582	132	57,352	134	53,500	125	59,064	138	428
33	ORX-3-PB-144L-1A-40K8	46,963	110	47,602	111	44,405	104	49,023	115	428
34	ORX-3-PB-144L-1A-50K7	56,582	132	57,352	134	53,500	125	59,064	138	428
35	ORX-3-PB-144L-1A-50K8	46,963	110	47,602	111	44,405	104	49,023	115	428

Generated by wpDataTables

Organix 3-PB T5W Lumens No Lens

Order	Model	T5W Lumens	T5W Lm/W	Watts
1	ORX-3-PB-144L-35-30K7	21,460	138	155
2	ORX-3-PB-144L-35-30K8	17,080	110	155
3	ORX-3-PB-144L-35-35K8	17,608	114	155
4	ORX-3-PB-144L-35-40K7	22,010	142	155
5	ORX-3-PB-144L-35-40K8	18,268	118	155
6	ORX-3-PB-144L-35-50K7	22,010	142	155
7	ORX-3-PB-144L-35-50K8	18,268	118	155
8	ORX-3-PB-144L-53-30K7	32,152	140	230
9	ORX-3-PB-144L-53-30K8	25,589	111	230
10	ORX-3-PB-144L-53-35K8	26,381	115	230
11	ORX-3-PB-144L-53-40K7	32,976	143	230
12	ORX-3-PB-144L-53-40K8	27,370	119	230
13	ORX-3-PB-144L-53-50K7	32,976	143	230
14	ORX-3-PB-144L-53-50K8	27,370	119	230
15	ORX-3-PB-144L-7-30K7	39,780	133	300
16	ORX-3-PB-144L-7-30K8	31,661	106	300
17	ORX-3-PB-144L-7-35K8	32,640	109	300
18	ORX-3-PB-144L-7-40K7	40,800	136	300
19	ORX-3-PB-144L-7-40K8	33,864	113	300
20	ORX-3-PB-144L-7-50K7	40,800	136	300
21	ORX-3-PB-144L-7-50K8	33,864	113	300
22	ORX-3-PB-144L-9-30K7	46,922	122	385
23	ORX-3-PB-144L-9-30K8	37,345	97	385
24	ORX-3-PB-144L-9-35K8	38,500	100	385
25	ORX-3-PB-144L-9-40K7	48,125	125	385
26	ORX-3-PB-144L-9-40K8	39,944	104	385
27	ORX-3-PB-144L-9-50K7	48,125	125	385
28	ORX-3-PB-144L-9-50K8	39,944	104	385
29	ORX-3-PB-144L-1A-30K7	51,703	121	428
30	ORX-3-PB-144L-1A-30K8	41,151	96	428
31	ORX-3-PB-144L-1A-35K8	42,423	99	428
32	ORX-3-PB-144L-1A-40K7	53,029	124	428
33	ORX-3-PB-144L-1A-40K8	44,014	103	428
34	ORX-3-PB-144L-1A-50K7	53,029	124	428
35	ORX-3-PB-144L-1A-50K8	44,014	103	428

Generated by wpDataTables

Organix 3-PB Lumens Clear Lens

Order	Model	15° Lumens	15° Lm/W	30° Lumens	30° Lm/W	55° Lumens	55° Lm/W	85° Lumens	85° Lm/W	Watts
1	ORX-3-PB-144L-35-30K7-CTG	19,268	124	19,525	126	18,369	119	20,101	130	155
2	ORX-3-PB-144L-35-30K8-CTG	15,336	99	15,540	100	14,620	94	15,999	103	155
3	ORX-3-PB-144L-35-35K8-CTG	15,810	102	16,021	103	15,072	97	16,493	106	155
4	ORX-3-PB-144L-35-40K7-CTG	19,763	128	20,026	129	18,840	122	20,617	133	155
5	ORX-3-PB-144L-35-40K8-CTG	16,403	106	16,622	107	15,637	101	17,112	110	155
6	ORX-3-PB-144L-35-50K7-CTG	19,763	128	20,026	129	18,840	122	20,617	133	155
7	ORX-3-PB-144L-35-50K8-CTG	16,403	106	16,622	107	15,637	101	17,112	110	155
8	ORX-3-PB-144L-53-30K7-CTG	28,782	125	29,164	127	27,377	119	29,926	130	230
9	ORX-3-PB-144L-53-30K8-CTG	22,908	100	23,211	101	21,789	95	23,818	104	230
10	ORX-3-PB-144L-53-35K8-CTG	23,616	103	23,929	104	22,463	98	24,555	107	230
11	ORX-3-PB-144L-53-40K7-CTG	29,521	128	29,912	130	28,079	122	30,694	133	230
12	ORX-3-PB-144L-53-40K8-CTG	24,502	107	24,827	108	23,305	101	25,476	111	230
13	ORX-3-PB-144L-53-50K7-CTG	29,521	128	29,912	130	28,079	122	30,694	133	230
14	ORX-3-PB-144L-53-50K8-CTG	24,502	107	24,827	108	23,305	101	25,476	111	230
15	ORX-3-PB-144L-7-30K7-CTG	35,802	119	36,239	121	34,062	114	37,294	124	300
16	ORX-3-PB-144L-7-30K8-CTG	28,495	95	28,842	96	27,110	90	29,682	99	300
17	ORX-3-PB-144L-7-35K8-CTG	29,376	98	29,734	99	27,948	93	30,600	102	300
18	ORX-3-PB-144L-7-40K7-CTG	36,720	122	37,168	124	34,935	116	38,250	128	300
19	ORX-3-PB-144L-7-40K8-CTG	30,478	102	30,849	103	28,996	97	31,748	106	300
20	ORX-3-PB-144L-7-50K7-CTG	36,720	122	37,168	124	34,935	116	38,250	128	300
21	ORX-3-PB-144L-7-50K8-CTG	30,478	102	30,849	103	28,996	97	31,748	106	300

Generated by wpDataTables

Organix 3-PB T5W Lumens Clear Lens

Order	Model	T5W Lumens	T5W Lm/W	Watts
1	ORX-3-PB-144L-35-30K7-CTG	18,241	118	155
2	ORX-3-PB-144L-35-30K8-CTG	14,518	94	155
3	ORX-3-PB-144L-35-35K8-CTG	14,967	97	155
4	ORX-3-PB-144L-35-40K7-CTG	18,709	121	155
5	ORX-3-PB-144L-35-40K8-CTG	15,528	100	155
6	ORX-3-PB-144L-35-50K7-CTG	18,709	121	155
7	ORX-3-PB-144L-35-50K8-CTG	15,528	100	155
8	ORX-3-PB-144L-53-30K7-CTG	27,329	119	230
9	ORX-3-PB-144L-53-30K8-CTG	21,751	95	230
10	ORX-3-PB-144L-53-35K8-CTG	22,424	97	230
11	ORX-3-PB-144L-53-40K7-CTG	28,030	122	230
12	ORX-3-PB-144L-53-40K8-CTG	23,265	101	230
13	ORX-3-PB-144L-53-50K7-CTG	28,030	122	230
14	ORX-3-PB-144L-53-50K8-CTG	23,265	101	230
15	ORX-3-PB-144L-7-30K7-CTG	33,813	113	300
16	ORX-3-PB-144L-7-30K8-CTG	26,912	90	300
17	ORX-3-PB-144L-7-35K8-CTG	27,744	92	300
18	ORX-3-PB-144L-7-40K7-CTG	34,680	116	300
19	ORX-3-PB-144L-7-40K8-CTG	28,784	96	300
20	ORX-3-PB-144L-7-50K7-CTG	34,680	116	300
21	ORX-3-PB-144L-7-50K8-CTG	28,784	96	300

Generated by wpDataTables

Organix 3-PB Lumens Diffused Lens

Order	Model	15° Lumens	15° Lm/W	30° Lumens	30° Lm/W	55° Lumens	55° Lm/W	85° Lumens	85° Lm/W	Watts
1	ORX-3-PB-144L-35-30K7-DPCL	13,601	88	13,783	89	12,967	84	14,189	92	155
2	ORX-3-PB-144L-35-30K8-DPCL	10,825	70	10,970	71	10,320	67	11,293	73	155
3	ORX-3-PB-144L-35-35K8-DPCL	11,160	72	11,309	73	10,639	69	11,642	75	155
4	ORX-3-PB-144L-35-40K7-DPCL	13,950	90	14,136	91	13,299	86	14,553	94	155
5	ORX-3-PB-144L-35-40K8-DPCL	11,579	75	11,733	76	11,038	71	12,079	78	155
6	ORX-3-PB-144L-35-50K7-DPCL	13,950	90	14,136	91	13,299	86	14,553	94	155
7	ORX-3-PB-144L-35-50K8-DPCL	11,579	75	11,733	76	11,038	71	12,079	78	155
8	ORX-3-PB-144L-53-30K7-DPCL	20,317	88	20,586	90	19,325	84	21,124	92	230
9	ORX-3-PB-144L-53-30K8-DPCL	16,170	70	16,384	71	15,381	67	16,813	73	230
10	ORX-3-PB-144L-53-35K8-DPCL	16,670	72	16,891	73	15,856	69	17,333	75	230
11	ORX-3-PB-144L-53-40K7-DPCL	20,838	91	21,114	92	19,820	86	21,666	94	230
12	ORX-3-PB-144L-53-40K8-DPCL	17,296	75	17,525	76	16,451	72	17,983	78	230
13	ORX-3-PB-144L-53-50K7-DPCL	20,838	91	21,114	92	19,820	86	21,666	94	230
14	ORX-3-PB-144L-53-50K8-DPCL	17,296	75	17,525	76	16,451	72	17,983	78	230
15	ORX-3-PB-144L-7-30K7-DPCL	25,272	84	25,580	85	24,044	80	26,325	88	300
16	ORX-3-PB-144L-7-30K8-DPCL	20,114	67	20,359	68	19,136	64	20,952	70	300
17	ORX-3-PB-144L-7-35K8-DPCL	20,736	69	20,989	70	19,728	66	21,600	72	300
18	ORX-3-PB-144L-7-40K7-DPCL	25,920	86	26,236	87	24,660	82	27,000	90	300
19	ORX-3-PB-144L-7-40K8-DPCL	21,514	72	21,776	73	20,468	68	22,410	75	300
20	ORX-3-PB-144L-7-50K7-DPCL	25,920	86	26,236	87	24,660	82	27,000	90	300
21	ORX-3-PB-144L-7-50K8-DPCL	21,514	72	21,776	73	20,468	68	22,410	75	300

Generated by wpDataTables

Organix 3-PB T5W Lumens Diffused Lens

Order	Model	T5W Lumens	T5W Lm/W	Watts
1	ORX-3-PB-144L-35-30K7-DPCL	12,876	83	155
2	ORX-3-PB-144L-35-30K8-DPCL	10,248	66	155
3	ORX-3-PB-144L-35-35K8-DPCL	10,565	68	155
4	ORX-3-PB-144L-35-40K7-DPCL	13,206	85	155
5	ORX-3-PB-144L-35-40K8-DPCL	10,961	71	155
6	ORX-3-PB-144L-35-50K7-DPCL	13,206	85	155
7	ORX-3-PB-144L-35-50K8-DPCL	10,961	71	155
8	ORX-3-PB-144L-53-30K7-DPCL	19,291	84	230
9	ORX-3-PB-144L-53-30K8-DPCL	15,354	67	230
10	ORX-3-PB-144L-53-35K8-DPCL	15,828	69	230
11	ORX-3-PB-144L-53-40K7-DPCL	19,786	86	230
12	ORX-3-PB-144L-53-40K8-DPCL	16,422	71	230
13	ORX-3-PB-144L-53-50K7-DPCL	19,786	86	230
14	ORX-3-PB-144L-53-50K8-DPCL	16,422	71	230
15	ORX-3-PB-144L-7-30K7-DPCL	23,868	80	300
16	ORX-3-PB-144L-7-30K8-DPCL	18,996	63	300
17	ORX-3-PB-144L-7-35K8-DPCL	19,584	65	300
18	ORX-3-PB-144L-7-40K7-DPCL	24,480	82	300
19	ORX-3-PB-144L-7-40K8-DPCL	20,318	68	300
20	ORX-3-PB-144L-7-50K7-DPCL	24,480	82	300
21	ORX-3-PB-144L-7-50K8-DPCL	20,318	68	300

Generated by wpDataTables

Download WHY SILICONE OPTICS? Brochure to Learn more!

ORX-3-PB Benefits

• The Organix family’s sleek and low profile can carry any establishment’s esthetic from the parking lot to the pickleball court
• 21,460 to 59,064 Lumen range with a 144 LED configuration and up to 157 Lumens Per Watts
• Standard Silicone Micro Optic distributions include 15 (15° Very Narrow Beam), 30 (30° Narrow Beam), 55 (55° Medium Beam), and 85 (85° Medium Beam)
• New Performance Silicone Micro Optic distributions include: T5W (Type 5 Wide) for greater coverage
• 3 lens options available: No Lens, Clear Tempered Glass Lens, and Diffused Polycarbonate Visual Comfort Lens
• 3000K, 3500K, 4000K, and 5000K CCT Multichip High Power 70 or 80 CRI standard
• For additional glare control there is the Glare Shield and House Side Shield options
• Pendant Mount standard
• 20kA Surge Protection (120V – 480V), 0–10V programmable, dimming LED drivers with an operating range of -40°C to 50°C for use in most climates with a THD @ Max Load < 15% • Bird Spikes and Bird Shroud options are available • 10 standard finishes, marine grade finish and custom finish available • Controls Agnostic: compatible with most control systems and sensors • Die-Cast Aluminum Housing for a precision fit, greater heat dispersion, and durability • Environmentally friendly product which reduces energy consumption, L70 > 140,000 hours
• Buy America(n) option compliant
