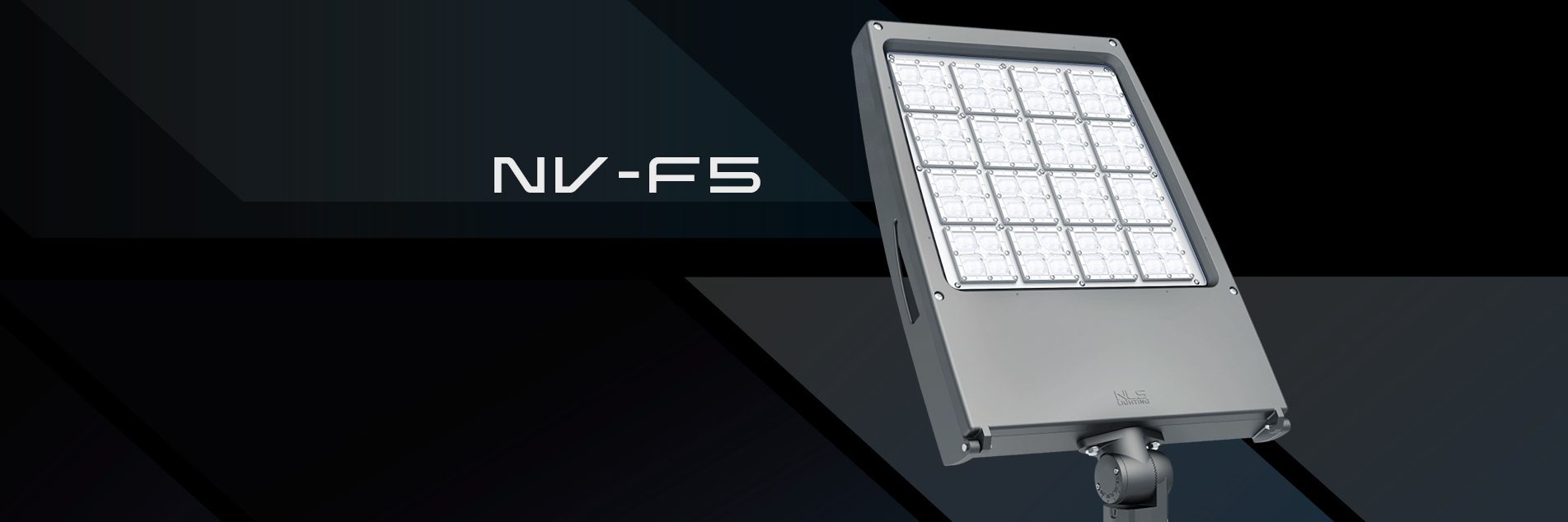

NV-F5 - NLS Lighting, LLC

Gallery
Literature
Installation
IES
BIM/REVIT
Lumen Data
Optical System
Features

Related marketing material is available for download or by request for delivery. Standard shipping is 5-7 business days via UPS Ground. For expedited delivery, please contact factory. Click HERE to order literature.

Click on image to download!

Name

Size

Modified

Ascending

Descending

Select all

Deselect all

Download folder

Download selected

Thumbnails view

List view

No options...

Loading...

Name

Size

Modified

Ascending

Descending

Select all

Deselect all

Download folder

Download selected

Thumbnails view

List view

No options...

*Consult Factory (or Local Rep) for Revit Files. For additional inquiries Contact Us.

NV-F5 Lumens

Order	Model	T2 Lumens	T2 Lm/W	T3 Lumens	T3 Lm/W	T4 Lumens	T4 Lm/W	T5 Lumens	T5 Lm/W	Watts
1	NV-F5-256L-75-27K7	61,730	107	62,191	108	59,020	103	63,404	110	575
2	NV-F5-256L-75-27K8	57,799	101	58,231	101	55,262	96	59,367	103	575
3	NV-F5-256L-75-30K8	61,970	108	62,433	109	59,250	103	63,651	111	575
4	NV-F5-256L-75-30K7	66,742	116	67,241	117	63,813	111	68,552	119	575
5	NV-F5-256L-75-35K8	61,970	108	62,433	109	59,250	103	63,651	111	575
6	NV-F5-256L-75-40K8	66,742	116	67,241	117	63,813	111	68,552	119	575
7	NV-F5-256L-75-40K7	72,114	125	72,654	126	68,949	120	74,071	129	575
8	NV-F5-256L-75-50K8	66,742	116	67,241	117	63,813	111	68,552	119	575
9	NV-F5-256L-75-50K7	72,114	125	72,654	126	68,949	120	74,071	129	575
10	NV-F5-256L-80-27K7	65,845	107	66,337	108	62,955	103	67,631	110	613
11	NV-F5-256L-80-27K8	61,652	101	62,113	101	58,947	96	63,325	103	613
12	NV-F5-256L-80-30K8	66,101	108	66,595	109	63,200	103	67,894	111	613
13	NV-F5-256L-80-30K7	71,191	116	71,724	117	68,067	111	73,123	119	613
14	NV-F5-256L-80-35K8	66,101	108	66,595	109	63,200	103	67,894	111	613
15	NV-F5-256L-80-40K8	71,191	116	71,724	117	68,067	111	73,123	119	613
16	NV-F5-256L-80-40K7	76,922	125	77,497	126	73,546	120	79,009	129	613
17	NV-F5-256L-80-50K8	71,191	116	71,724	117	68,067	111	73,123	119	613
18	NV-F5-256L-80-50K7	76,922	125	77,497	126	73,546	120	79,009	129	613
19	NV-F5-256L-90-27K7	74,075	107	74,629	108	70,824	103	76,085	110	690
20	NV-F5-256L-90-27K8	69,359	101	69,878	101	66,315	96	71,241	103	690
21	NV-F5-256L-90-30K8	74,364	108	74,920	109	71,100	103	76,381	111	690
22	NV-F5-256L-90-30K7	80,090	116	80,689	117	76,575	111	82,263	119	690
23	NV-F5-256L-90-35K8	74,364	108	74,920	109	71,100	103	76,381	111	690
24	NV-F5-256L-90-40K8	80,090	116	80,689	117	76,575	111	82,263	119	690
25	NV-F5-256L-90-40K7	86,537	125	87,184	126	82,739	120	88,885	129	690
26	NV-F5-256L-90-50K8	80,090	116	80,689	117	76,575	111	82,263	119	690
27	NV-F5-256L-90-50K7	86,537	125	87,184	126	82,739	120	88,885	129	690
28	NV-F5-256L-97-27K7	80,248	107	80,848	108	76,726	103	82,425	110	748
29	NV-F5-256L-97-27K8	75,139	100	75,701	101	71,841	96	77,177	103	748
30	NV-F5-256L-97-30K8	80,561	108	81,163	109	77,025	103	82,746	111	748
31	NV-F5-256L-97-30K7	86,764	116	87,413	117	82,956	111	89,118	119	748
32	NV-F5-256L-97-35K8	80,561	108	81,163	109	77,025	103	82,746	111	748
33	NV-F5-256L-97-40K8	86,764	116	87,413	117	82,956	111	89,118	119	748
34	NV-F5-256L-97-40K7	93,749	125	94,450	126	89,634	120	96,292	129	748
35	NV-F5-256L-97-50K8	86,764	116	87,413	117	82,956	111	89,118	119	748
36	NV-F5-256L-97-50K7	93,749	125	94,450	126	89,634	120	96,292	129	748
37	NV-F5-256L-1-27K7	86,421	107	87,068	108	82,628	103	88,766	110	805
38	NV-F5-256L-1-27K8	80,919	101	81,524	101	77,367	96	83,114	103	805
39	NV-F5-256L-1-30K8	86,758	108	87,406	109	82,950	103	89,111	111	805
40	NV-F5-256L-1-30K7	93,438	116	94,137	117	89,338	111	95,973	119	805
41	NV-F5-256L-1-35K8	86,758	108	87,406	109	82,950	103	89,111	111	805
42	NV-F5-256L-1-40K8	93,438	116	94,137	117	89,338	111	95,973	119	805
43	NV-F5-256L-1-40K7	100,960	125	101,715	126	96,529	120	103,699	129	805
44	NV-F5-256L-1-50K8	93,438	116	94,137	117	89,338	111	95,973	119	805
45	NV-F5-256L-1-50K7	100,960	125	101,715	126	96,529	120	103,699	129	805

Generated by wpDataTables

NV-F5 Beam Optic Lumens

Order	Model	85º Lumens	85º Lm/W	55º Lumens	55º Lm/W	30º Lumens	30º Lm/W	15º Lumens	15º Lm/W	Watts
1	NV-F5-256L-75-27K7	62,022	108	60,878	106	57,984	101	55,319	96	575
2	NV-F5-256L-75-27K8	58,073	101	57,002	99	54,292	94	51,797	90	575
3	NV-F5-256L-75-30K8	62,263	108	61,115	106	58,210	101	55,534	97	575
4	NV-F5-256L-75-30K7	67,058	117	65,821	114	62,692	109	59,810	104	575
5	NV-F5-256L-75-35K8	62,263	108	61,115	106	58,210	101	55,534	97	575
6	NV-F5-256L-75-40K8	67,058	117	65,821	114	62,692	109	59,810	104	575
7	NV-F5-256L-75-40K7	72,456	126	71,119	124	67,739	118	64,625	112	575
8	NV-F5-256L-75-50K8	67,058	117	65,821	114	62,692	109	59,810	104	575
9	NV-F5-256L-75-50K7	72,456	126	71,119	124	67,739	118	64,625	112	575
10	NV-F5-256L-80-27K7	66,157	108	64,936	106	61,850	101	59,007	96	613
11	NV-F5-256L-80-27K8	61,944	101	60,802	99	57,912	94	55,250	90	613
12	NV-F5-256L-80-30K8	66,414	108	65,189	106	62,090	101	59,236	97	613
13	NV-F5-256L-80-30K7	71,528	117	70,209	115	66,872	109	63,798	104	613
14	NV-F5-256L-80-35K8	66,414	108	65,189	106	62,090	101	59,236	97	613
15	NV-F5-256L-80-40K8	71,528	117	70,209	115	66,872	109	63,798	104	613
16	NV-F5-256L-80-40K7	77,286	126	75,861	124	72,254	118	68,933	112	613
17	NV-F5-256L-80-50K8	71,528	117	70,209	115	66,872	109	63,798	104	613
18	NV-F5-256L-80-50K7	77,286	126	75,861	124	72,254	118	68,933	112	613
19	NV-F5-256L-90-27K7	74,426	108	73,053	106	69,581	101	66,382	96	690
20	NV-F5-256L-90-27K8	69,687	101	68,402	99	65,150	94	62,156	90	690
21	NV-F5-256L-90-30K8	74,716	108	73,338	106	69,851	101	66,641	97	690
22	NV-F5-256L-90-30K7	80,469	117	78,985	114	75,230	109	71,773	104	690
23	NV-F5-256L-90-35K8	74,716	108	73,338	106	69,851	101	66,641	97	690
24	NV-F5-256L-90-40K8	80,469	117	78,985	114	75,230	109	71,773	104	690
25	NV-F5-256L-90-40K7	86,947	126	85,343	124	81,286	118	77,550	112	690
26	NV-F5-256L-90-50K8	80,469	117	78,985	114	75,230	109	71,773	104	690
27	NV-F5-256L-90-50K7	86,947	126	85,343	124	81,286	118	77,550	112	690
28	NV-F5-256L-97-27K7	80,628	108	79,141	106	75,379	101	71,914	96	748
29	NV-F5-256L-97-27K8	75,495	101	74,102	99	70,580	94	67,336	90	748
30	NV-F5-256L-97-30K8	80,942	108	79,449	106	75,672	101	72,194	97	748
31	NV-F5-256L-97-30K7	87,175	117	85,567	114	81,500	109	77,754	104	748
32	NV-F5-256L-97-35K8	80,942	108	79,449	106	75,672	101	72,194	97	748
33	NV-F5-256L-97-40K8	87,175	117	85,567	114	81,500	109	77,754	104	748
34	NV-F5-256L-97-40K7	94,192	126	92,455	124	88,060	118	84,013	112	748
35	NV-F5-256L-97-50K8	87,175	117	85,567	114	81,500	109	77,754	104	748
36	NV-F5-256L-97-50K7	94,192	126	92,455	124	88,060	118	84,013	112	748
37	NV-F5-256L-1-27K7	86,830	108	85,229	106	81,177	101	77,446	96	805
38	NV-F5-256L-1-27K8	81,302	101	79,802	99	76,009	94	72,515	90	805
39	NV-F5-256L-1-30K8	87,168	108	85,561	106	81,493	101	77,748	97	805
40	NV-F5-256L-1-30K7	93,881	117	92,149	114	87,769	109	83,735	104	805
41	NV-F5-256L-1-35K8	87,168	108	85,561	106	81,493	101	77,748	97	805
42	NV-F5-256L-1-40K8	93,881	117	92,149	114	87,769	109	83,735	104	805
43	NV-F5-256L-1-40K7	101,438	126	99,567	124	94,834	118	90,475	112	805
44	NV-F5-256L-1-50K8	93,881	117	92,149	114	87,769	109	83,735	104	805
45	NV-F5-256L-1-50K7	101,438	126	99,567	124	94,834	118	90,475	112	805

Generated by wpDataTables

Download WHY SILICONE OPTICS? Brochure to Learn more!

• Ideal for Large Flood and Area Applications: Building Facades, Wall Washes, Up Lighting, , Commercial, Security Lighting, Roadways, and Airports Aprons
• Sleek Robust Adaptable Design of the NV-F5 (Weight: 44 lbs.) Compliments the Entire Flood Family: NV-F1(up to 6,000 Lumens), NV-F2 (up to 10,000 Lumens), NV-F3 (up to 25,000 Lumens) , and NV-F4 (up to 51,000 Lumens)
• Distributions Options: 15° Very Narrow, 30° Narrow Beam, 55° Medium Beam, 85° Wide Beam, NEMA 7H x 5V, NEMA 7H x 6V, Forward Throw T4, and Symmetrical T5
• 256L LED Configurations, 537 to 805 Watts
• 2700K, 3000K, 3500K, 4000K, 5000K CCT Multichip High Power 70 & 80 CRI LEDs, Static Amber, Red, Green, Blue LEDs as Options
• IP66 Rated Against Dust & Water Ingress
• IK10 Rated for Impact Protection, Tamper Proof and Vandal Resistant Options Available
• Mountings available have a 1.5G to 3G Vibration Rating: Knuckle Mount, Trunnion Mount, and Wall Mount
• 20kA Surge Protection (120V – 480V), 0 – 10V Programmable, Dimming LED Drivers
• LED Drivers Ambient Temp. Min (°C) is -40°C and Ambient Temp. Max (°C) ranges to 55°C
• Silicone Micro Optics providing 96% Clarity and Heat Resistant up to 150°C
• 9 Standard Finishes, Custom and Marine Grade Finish Available
• Controls Agnostic, Compatible with Most Control Systems and Sensors
• Environmentally Friendly Product Which Reduces Energy Consumption, L70 > 100,000 hours
• Buy America(n) Option Available, Easy to Install Mounting
• Cost Competitive and Short Shipping Lead Times in Days & Weeks
