| Order | Milliamps | 80L | 96L | 112L | 128L |
|---|---|---|---|---|---|
| 1 | 1050 mA | 263w | 316w | 366w | 409w |
| ORDER | Order | Model | TP Lumens | TP Lm/W | TP AHS Lumens | TP AHS LM/W | TP HSS Lumens | TP HSS Lm/W | Watts |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 1 | NV-2-80L-1-30K7 | 30,245 | 115 | 18,936 | 72 | 14,991 | 57 | 263 |
| 2 | 2 | NV-2-80L-1-40K7 | 32,086 | 122 | 19,988 | 76 | 16,043 | 61 | 263 |
| 3 | 3 | NV-2-80L-1-50K7 | 33,664 | 128 | 21,040 | 80 | 17,095 | 65 | 263 |
| 4 | 4 | NV-2-96L-1-30K7 | 36,340 | 115 | 22,752 | 72 | 18,012 | 57 | 316 |
| 5 | 5 | NV-2-96L-1-40K7 | 38,552 | 122 | 24,016 | 76 | 19,276 | 61 | 316 |
| 6 | 6 | NV-2-96L-1-50K7 | 40,448 | 128 | 25,280 | 80 | 20,540 | 65 | 316 |
| 7 | 7 | NV-2-112L-1-30K7 | 42,090 | 115 | 26,352 | 72 | 20,862 | 57 | 366 |
| 8 | 8 | NV-2-112L-1-40K7 | 44,652 | 122 | 27,816 | 76 | 22,326 | 61 | 366 |
| 9 | 9 | NV-2-112L-1-50K7 | 46,848 | 128 | 29,280 | 80 | 23,790 | 65 | 366 |
| 10 | 10 | NV-2-128L-1-30K7 | 47,035 | 115 | 29,448 | 72 | 23,313 | 57 | 409 |
| 11 | 11 | NV-2-128L-1-40K7 | 49,898 | 122 | 31,084 | 76 | 24,949 | 61 | 409 |
| 12 | 12 | NV-2-128L-1-50K7 | 52,352 | 128 | 33,129 | 81 | 26,585 | 65 | 409 |
![]()
![]()

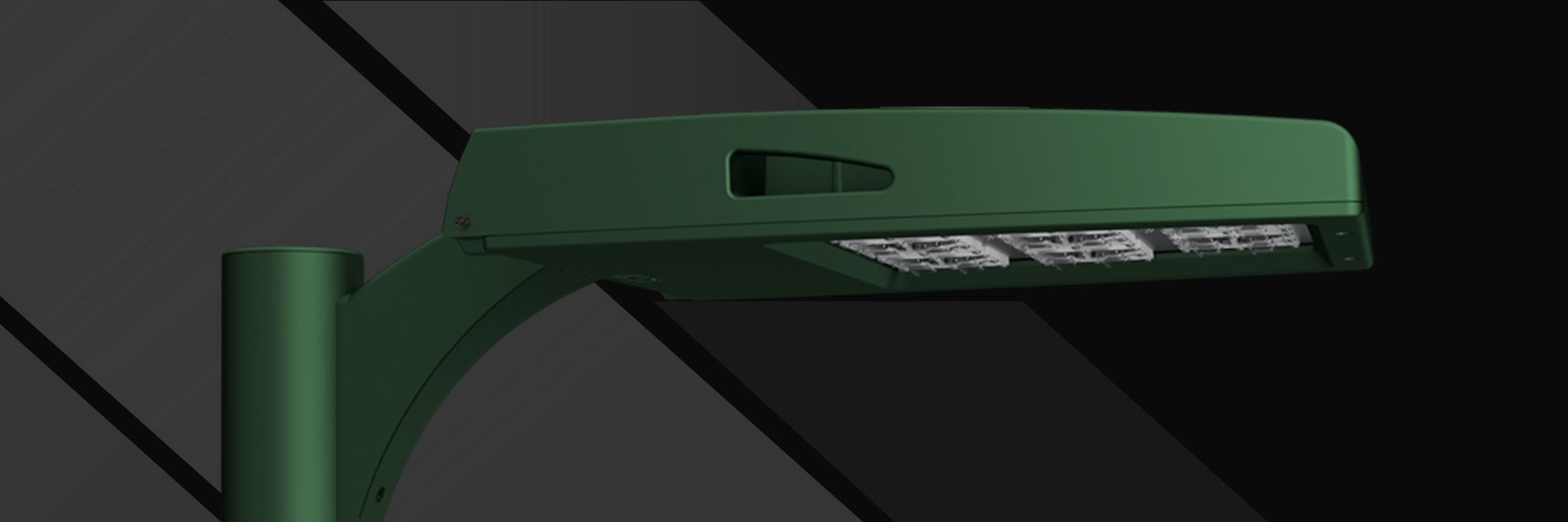

• The NV-2 Pickleball is a Great Value Outdoor Lighting Solution
• NV has been installed in hundreds of lighting projects across the nation
• NV has a sleek design that compliments country club or private court settings
• NV can be ordered with a pre-mounted architectural sweep arm at no extra cost that extends the fixture on to the court 18 inches
• NV can adapt to any existing fixture arm, cross arm, or pole
• NV is completely designed, tooled, extruded, cast, fabricated, powder coated, and assembled in the United States meeting the strictest Made in the USA requirements
• NV optical system is silicon and will never yellow. Silicon optical system does not require different gasket that could fail.
• NV LED light source is concealed and hidden from sight from neighbors, the environment, and dark sky
• NLS manufactures complimentary poles and arms with the same exact paint finish and texture
• NV features drivers from Advance (Best in Industry in terms of longevity, surge protection, and voltage drop
• Readily available in 480 volt
• NV depreciation rate is more than 3x slower than most import fixtures
• In House photometric design Pickleball expertise available at no charge
• NV-2 is Competitively Priced
• NV-2 Generally can ship in two weeks or less
NLS Lighting, LLC is an American outdoor LED lighting manufacturer located in Southern California. Our specification grade architectural and commercial products feature high efficacy and NLS' Dark Sky compliant Impact Rated Optics with Glare Control Option and Visual Comfort Full Cutoff patented Star PowerTM optical technology that exceed IES required light levels utilizing the least amount of energy. Our qualified team of outdoor lighting experts stands behind Intelligent Light + Performance®.
