| Order | Milliamps | 16L |
|---|---|---|
| 1 | 400 mA (40) | 21w |
| 2 | 530 mA (53) | 28w |
| 3 | 700 mA (7) | 36w |
| Order | Model | T3 Lumens | T3 Lm/W | T5 Lumens | T5 Lm/W | Watts |
|---|---|---|---|---|---|---|
| 1 | SY-1-16L-40-27K7 | 1,691 | 81 | 1,779 | 85 | 21 |
| 2 | SY-1-16L-40-27K8 | 1,583 | 75 | 1,666 | 79 | 21 |
| 3 | SY-1-16L-40-30K8 | 1,697 | 81 | 1,786 | 85 | 21 |
| 4 | SY-1-16L-40-30K7 | 1,828 | 87 | 1,923 | 92 | 21 |
| 5 | SY-1-16L-40-35K8 | 1,697 | 81 | 1,786 | 85 | 21 |
| 6 | SY-1-16L-40-40K8 | 1,828 | 87 | 1,923 | 92 | 21 |
| 7 | SY-1-16L-40-40K7 | 1,975 | 94 | 2,078 | 99 | 21 |
| 8 | SY-1-16L-40-50K8 | 1,828 | 87 | 1,923 | 92 | 21 |
| 9 | SY-1-16L-40-50K7 | 1,975 | 94 | 2,078 | 99 | 21 |
| 10 | SY-1-16L-53-30K7 | 2,492 | 89 | 2,632 | 94 | 28 |
| 11 | SY-1-16L-53-40K7 | 2,576 | 92 | 2,716 | 97 | 28 |
| 12 | SY-1-16L-53-50K7 | 2,688 | 96 | 2,828 | 101 | 28 |
| 13 | SY-1-16L-7-30K7 | 3,204 | 89 | 3,384 | 94 | 36 |
| 14 | SY-1-16L-7-40K7 | 3,312 | 92 | 3,492 | 97 | 36 |
| 15 | SY-1-16L-7-50K7 | 3,456 | 96 | 3,636 | 101 | 36 |
The Star Power Reflector is the best Value LED optical system and utilizes the same mathematical patterns exhibited by millions of stars every night to distribute light to the intended target. Our goal is to create the highest amount of visual acuity and clarity with the least amount of required energy. This is Star Power. This is NLS Lighting.

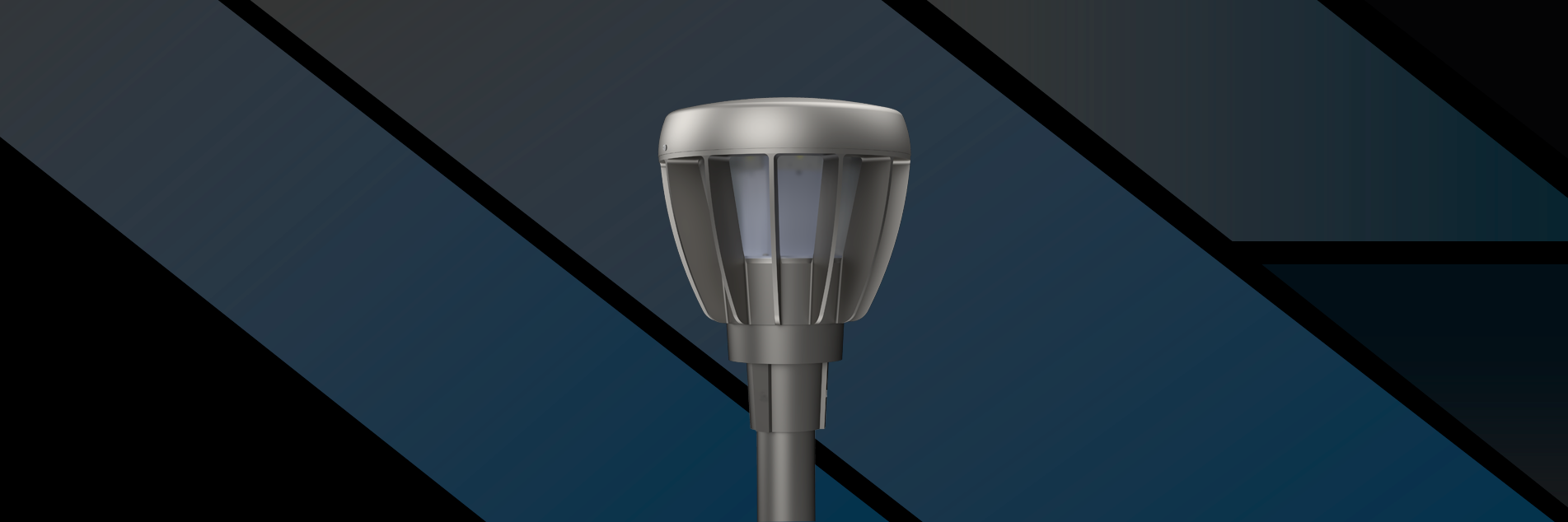

SENTRY: SIZE 1
– Post top lantern that blends traditional design with modern LED technology
– Vandal resistant design
– Light Distributions are Type 3 and 5
– Form, optics and thermal management contribute to reducing energy costs while utilizing the least amount of poles and fixtures per project at a competitive price
– Patented Star Power; reflector system enables performance to exceed IES minimum foot candle levels and extend maintenance cycles
– Philips Advance driver technology warranted 5 years
– Conforms to the strictest Made in America standards designed, tooled, fabricated and assembled in the USA
