TBA - NLS Lighting, LLC

Related marketing material is available for download or by request for delivery. Standard shipping is 5-7 business days via UPS Ground. For expedited delivery, please contact factory. Click HERE to order literature.

Click on image to download!

Generated by wpDataTables

Order	Model	T2 Lumens	T2 Lm/W	T3 Lumens	T3 Lm/W	T4 Lumens	T4 Lm/W	Watts
1	TBA-16L-175-30K7	774	77	765	77	799	80	10
2	TBA-16L-175-40K7	799	80	791	79	825	83	10
3	TBA-16L-175-50K7	833	73	816	82	850	85	10
4	TBA-16L-40-27K7	2,196	105	2,209	105	2,158	103	21
5	TBA-16L-40-27K8	2,057	98	2,069	99	2,021	96	21
6	TBA-16L-40-30K8	2,205	105	2,218	106	2,166	103	21
7	TBA-16L-40-30K7	2,375	113	2,389	114	2,333	111	21
8	TBA-16L-40-35K8	2,205	105	2,218	106	2,166	103	21
9	TBA-16L-40-40K8	2,375	113	2,389	114	2,333	111	21
10	TBA-16L-40-40K7	2,566	122	2,581	123	2,521	120	21
11	TBA-16L-40-50K8	2,375	113	2,389	114	2,333	111	21
12	TBA-16L-40-50K7	2,566	122	2,581	123	2,521	120	21
13	TBA-16L-53-30K7	2,968	106	2,940	105	3,080	110	28
14	TBA-16L-53-40K7	3,220	115	3,192	114	3,332	119	28
15	TBA-16L-53-50K7	3,472	124	3,416	122	3,584	128	28
16	TBA-16L-7-30K7	3,672	102	3,636	101	3,816	106	36
17	TBA-16L-7-40K7	3,996	111	3,924	109	4,104	114	36
18	TBA-16L-7-50K7	4,284	119	4,248	118	4,428	123	36
19	TBA-16L-1-30K7	5,544	99	5,488	98	5,408	96	56
20	TBA-16L-1-40K7	6,048	108	5,936	106	5,992	107	56
21	TBA-16L-1-50K7	6,496	116	6,384	114	6,440	115	56

Generated by wpDataTables

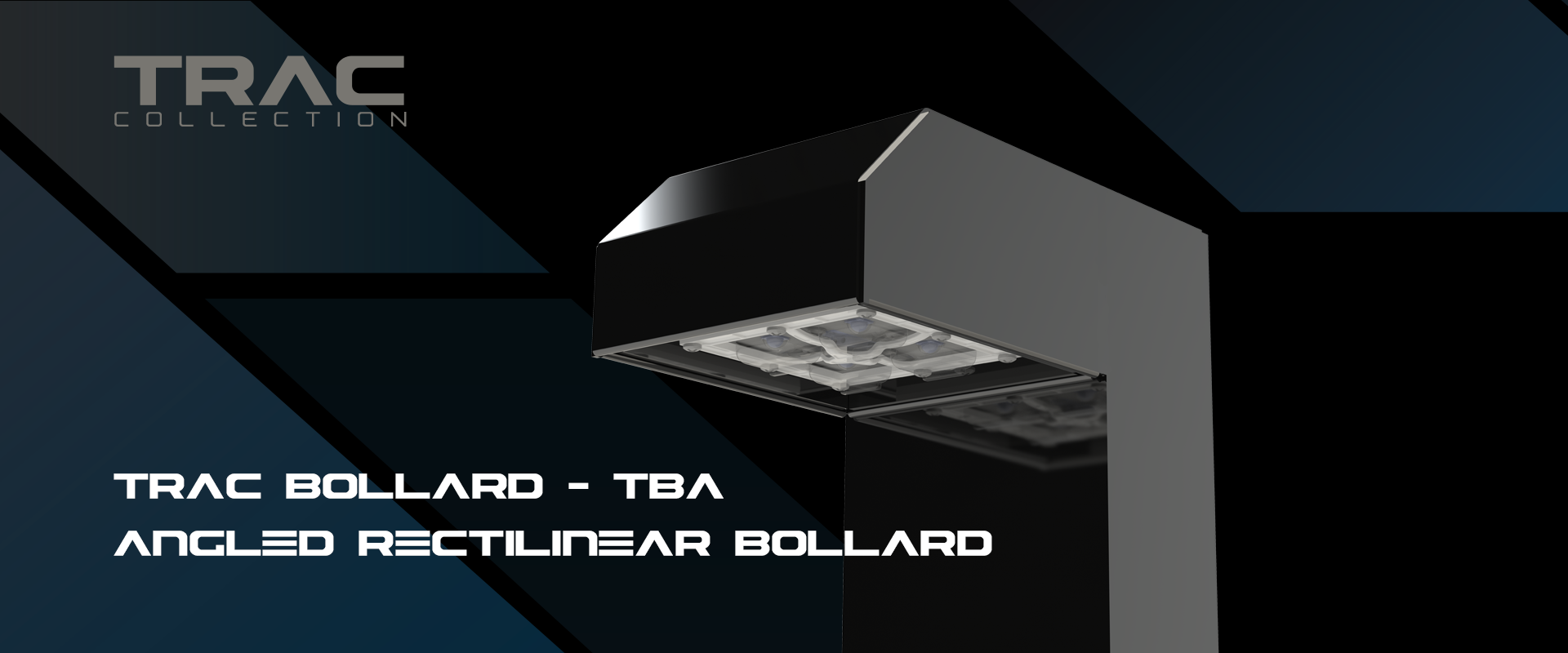

TRAC Collection TBA

• Elegant Rectilinear Extruded Aluminum Housing
• Silicone Micro Optics
• IES Distributions T2, T3, T4
• L70 173,000 Hours
• 0-10V Dimming Drivers
• 3000, 4000, or 5000 Kelvin
• 700-6,400 Lumens, 10-56 Watts
• Advanced Thermal Management System
• 5 mils Electrostatic Powder Coat
• IP67 Light Engine
