| Order | Milliamps | 16L |
|---|---|---|
| 1 | 400 mA | 21w |
| 2 | 530 mA | 26w |
| 3 | 700 mA | 36w |
| Order | Model Number | T5 Lumens | T5 Lm/W | Watts |
|---|---|---|---|---|
| 1 | SEA SIDE-COG45-16L-40-27K7 | 987 | 47 | 21 |
| 2 | SEA SIDE-COG45-16L-40-27K8 | 924 | 44 | 21 |
| 3 | SEA SIDE-COG45-16L-40-30K8 | 991 | 47 | 21 |
| 4 | SEA SIDE-COG45-16L-40-30K7 | 1,067 | 51 | 21 |
| 5 | SEA SIDE-COG45-16L-40-35K8 | 991 | 47 | 21 |
| 6 | SEA SIDE-COG45-16L-40-40K8 | 1,067 | 51 | 21 |
| 7 | SEA SIDE-COG45-16L-40-40K7 | 1,153 | 55 | 21 |
| 8 | SEA SIDE-COG45-16L-40-50K8 | 1,067 | 51 | 21 |
| 9 | SEA SIDE-COG45-16L-40-50K7 | 1,153 | 55 | 21 |
| 10 | SEA SIDE-COG45-16L-53-30K | 1,429 | 55 | 26 |
| 11 | SEA SIDE-COG45-16L-53-40K | 1,502 | 58 | 26 |
| 12 | SEA SIDE-COG45-16L-53-50K | 1,502 | 58 | 26 |
| 13 | SEA SIDE-COG45-16L-7-30K | 1,906 | 53 | 36 |
| 14 | SEA SIDE-COG45-16L-7-40K | 2,003 | 56 | 36 |
| 15 | SEA SIDE-COG45-16L-7-50K | 2,003 | 56 | 36 |
| 16 | SEA SIDE-SL-16L-40-27K7 | 1,081 | 51 | 21 |
| 17 | SEA SIDE-SL-16L-40-27K8 | 1,012 | 48 | 21 |
| 18 | SEA SIDE-SL-16L-40-30K8 | 1,085 | 52 | 21 |
| 19 | SEA SIDE-SL-16L-40-30K7 | 1,169 | 56 | 21 |
| 20 | SEA SIDE-SL-16L-40-35K8 | 1,085 | 52 | 21 |
| 21 | SEA SIDE-SL-16L-40-40K8 | 1,169 | 56 | 21 |
| 22 | SEA SIDE-SL-16L-40-40K7 | 1,263 | 60 | 21 |
| 23 | SEA SIDE-SL-16L-40-50K8 | 1,169 | 56 | 21 |
| 24 | SEA SIDE-SL-16L-40-50K7 | 1,263 | 60 | 21 |
| 25 | SEA SIDE-SL-16L-53-30K | 1,508 | 58 | 26 |
| 26 | SEA SIDE-SL-16L-53-40K | 1,612 | 62 | 26 |
| 27 | SEA SIDE-SL-16L-53-50K | 1,690 | 65 | 26 |
| 28 | SEA SIDE-SL-16L-7-30K | 2,030 | 58 | 36 |
| 29 | SEA SIDE-SL-16L-7-40K | 2,170 | 62 | 36 |
| 30 | SEA SIDE-SL-16L-7-50K | 2,275 | 65 | 36 |
| 31 | SEA SIDE-PR-16L-40-27K7 | 1,397 | 67 | 21 |
| 32 | SEA SIDE-PR-16L-40-27K8 | 1,308 | 62 | 21 |
| 33 | SEA SIDE-PR-16L-40-30K8 | 1,402 | 67 | 21 |
| 34 | SEA SIDE-PR-16L-40-30K7 | 1,510 | 72 | 21 |
| 35 | SEA SIDE-PR-16L-40-35K8 | 1,402 | 67 | 21 |
| 36 | SEA SIDE-PR-16L-40-40K8 | 1,510 | 72 | 21 |
| 37 | SEA SIDE-PR-16L-40-40K7 | 1,632 | 78 | 21 |
| 38 | SEA SIDE-PR-16L-40-50K8 | 1,510 | 72 | 21 |
| 39 | SEA SIDE-PR-16L-40-50K7 | 1,632 | 78 | 21 |
| 40 | SEA SIDE-PR-16L-53-30K | 2,002 | 77 | 26 |
| 41 | SEA SIDE-PR-16L-53-40K | 2,106 | 81 | 26 |
| 42 | SEA SIDE-PR-16L-53-50K | 2,184 | 84 | 26 |
| 43 | SEA SIDE-PR-16L-7-30K | 2,695 | 77 | 36 |
| 44 | SEA SIDE-PR-16L-7-40K | 2,835 | 81 | 36 |
| 45 | SEA SIDE-PR-16L-7-50K | 2,975 | 85 | 36 |
The Star Power reflector is the best Value LED optical system and utilizes the same mathematical patterns exhibited by millions of stars every night to distribute light to the intended target. Our goal is to create the highest amount of visual acuity and clarity with the least amount of required energy. This is Star Power. This is NLS Lighting.

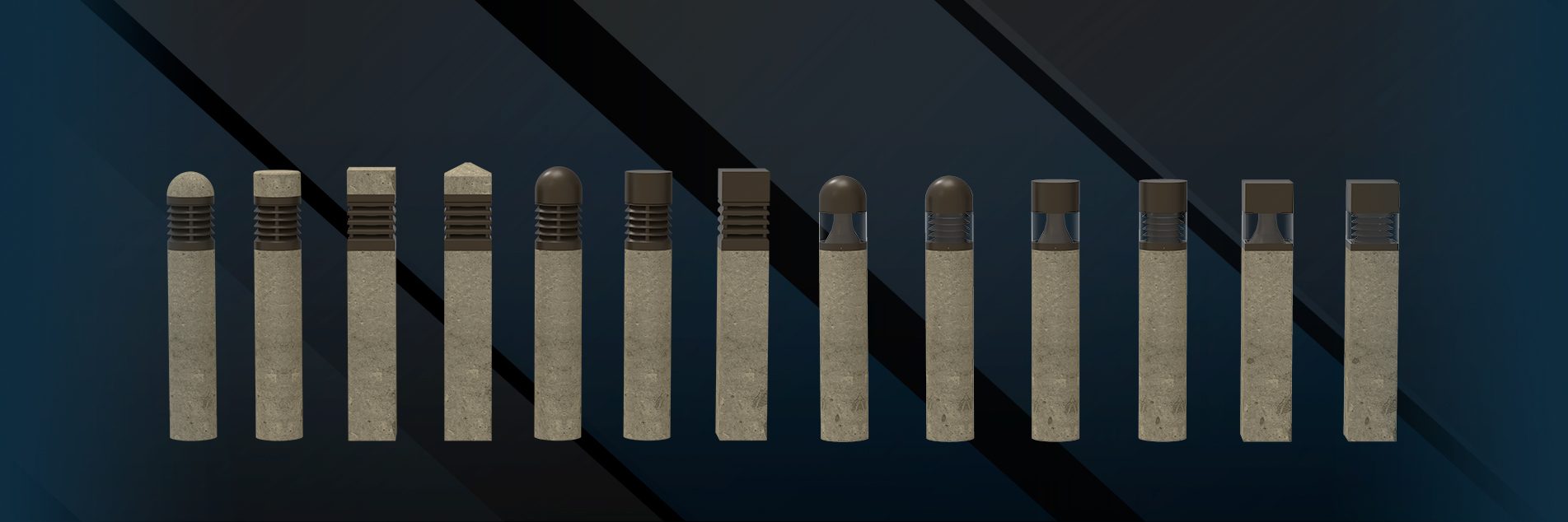

• The Sea Side Concrete Bollard Family is a combination of security, style and vandal resistance that blends beautifully into any pathway environment
• 8” Diameter Round and 8” Square profiles
• 4 Standard Concrete Textures, 13 Standard Concrete Colors, along with custom options available
• 3 standard heights per configuration available for design flexibility
• 924 Lumens to 2,975 Lumens with reduced glare and improved uniformity
• T5 distribution for the Cut Off Grill, Stacked Louver, and Paracline Reflector options
• 2700K, 3000K, 3500K (80 CRI only), 4000K, and 5000K CCT multichip high power 70 and 80 CRI LEDs, and Amber
• 20kA Surge Protection (120V – 480V), 0–10V programmable, dimming LED drivers

TBL | Spec Sheet

TBA | Spec Sheet

SEA SIDE (SQ) FLAT TOP, COG45 | Spec Sheet

SEA SIDE (SQ) FLAT TOP, STACKED LOUVER | Spec Sheet

SEA SIDE (SQ) FLAT TOP, PARACLINE | Spec Sheet

SEA SIDE (RND) FLAT TOP, COG45 | Spec Sheet

SEA SIDE (RND) FLAT TOP, STACKED LOUVER | Spec Sheet

SEA SIDE (RND) FLAT TOP, PARACLINE | Spec Sheet

SEA SIDE (RND) DOME TOP, COG45 | Spec Sheet

SEA SIDE (RND) DOME TOP, STACKED LOUVER | Spec Sheet

SEA SIDE (RND) DOME TOP, PARACLINE | Spec Sheet

CALIFORNIA BOLLARD | Spec Sheet

RADIAN BOLLARD | Spec Sheet

WESTFIELD BOLLARD | Spec Sheet
